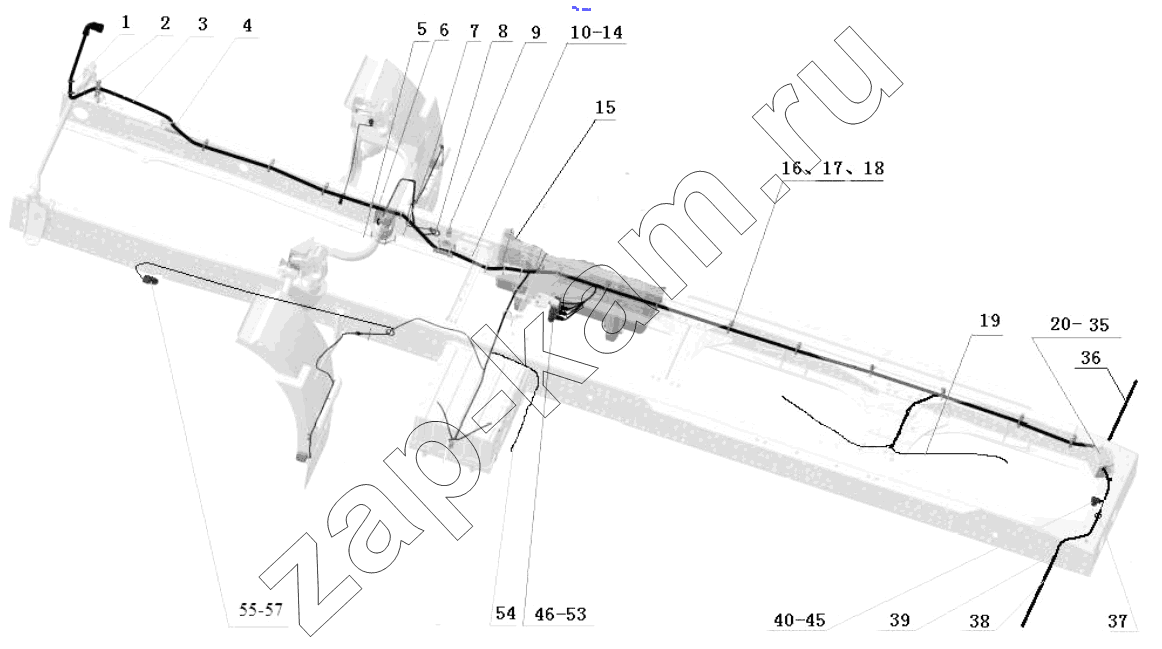

CHASSIS ELECTRICAL APPLIANCES/TRACTORS
/ Shaanxi Shacman SX42584V324
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 81.25441.2413 | Rubber protective plate | 1; | - | |
| 2 | JZ91199930016 | Bracket | 1; | - | |
| 3 | DZ97189773022 | Frame wiring harness | 1; | - | |
| 4 | DZ93189360094 | Bracket | 1; | - | |
| 5 | DZ97189777041 | L bracket | 1; | - | |
| 6 | DZ93189777201 | Wire harness fixing bracket (engine mount) | 1; | - | |
| 7 | DZ93189772977 | Engine harness bracket | 1; | - | |
| 8 | DZ9100360276 | Threading sheath | 1; | - | |
| 9 | DZ93189776061 | Cab lock signal switch wiring harness | 1; | - | |
| 10 | 190003179030 | Protector | 1; | - | |
| 11 | Q150B1235 | Hex.screw | 2; | - | |
| 12 | Q340B12 | Гайка | 2; | - | |
| 13 | Q40308 | Шайба пружинная | 2; | 10 ₽ - 60 ₽ | |
| 14 | Q40108 | Шайба А8,4х16х1,6-200НV-МАN183-В4 | 2; | - | |
| 15 | 179100770395 | Буж электропровода | 1; | - | |
| 16 | DZ93189777033 | Fastening strap with spacer | 1; | - | |
| 17 | DZ93189777034 | Isolated block | 1; | - | |
| 18 | 190003171393 | Лента крепления | 20; | - | |
| 19 | DZ95259774104 | Differential lock wire harness between wheels and shafts | 1; | - | |
| 20 | DZ91189777021 | Distribution box | 1; | - | |
| 21 | DZ9100770393 | Splitter bracket assembly | 1; | - | |
| 22 | Q150B0625 | Hex. Screw | 1; | - | |
| 23 | Q40206 | Шайба | 1; | - | |
| 24 | Q41206 | Outer serrated lock washer | 1; | - | |
| 25 | 179100770391 | Бокс распределения | 1; | - | |
| 26 | Q2712965 | Cross recessed pan head tapping screws | 3; | - | |
| 27 | 190003179811 | PVC hose | ; | - | |
| 28 | 179100770394 | Крышка | 1; | - | |
| 29 | DZ9100770079 | Round seal | 1; | - | |
| 30 | 179100770395 | Буж электропровода | 3; | - | |
| 31 | Q2713525 | Cross recessed pan head tapping screws | 4; | - | |
| 32 | Q150B0630Q | Hex head bolt | 2; | - | |
| 33 | Q40206 | Шайба | 2; | - | |
| 34 | Q40306 | Шайба | 2; | - | |
| 35 | Q340B06 | Nut | 2; | - | |
| 36 | DZ9100773120 | Right combination rear lamp wire | 1; | - | |
| 37 | DZ93189777031 | Fastening strap with fixing seat | 1; | - | |
| 38 | DZ93189776501 | Left tail light wiring harness | 1; | - | |
| 39 | DZ9100360276 | Threading sheath | 2; | - | |
| 40 | DZ9100770073 | Жгут зуммера | 1; | - | |
| 41 | DZ9100580050 | Звуковой сигнал заднего хода | 1; | - | |
| 42 | Q150B0625 | Hex. Screw | 1; | - | |
| 43 | Q40106 | Шайба 8х16х2-SТ-А3С | 1; | - | |
| 44 | Q340B06 | Nut | 1; | - | |
| 45 | Q340B06 | Nut | 1; | - | |
| 46 | 81.52160.6115 | Электромагнитный клапан | 3; | - | |
| 47 | Q150B08170 | Hexagonal head bolt | 2; | - | |
| 48 | Q40008 | Шайба | 2; | - | |
| 49 | Q33208 | Гайка | 2; | - | |
| 50 | DZ93189711111 | Valve Bracket | 1; | - | |
| 51 | Q150B0810 | Hex bolt | 2; | - | |
| 52 | Q40008 | Шайба | 2; | - | |
| 53 | Q33208 | Гайка | 2; | - | |
| 54 | DZ97189772791 | Air drying tank chassis wiring harness | 1; | - | |
| 55 | DZ97189711201 | Air pressure sensor | 2; | - | |
| 56 | Q72312 | Sealing washer | 2; | - | |
| 57 | Q40312 | Шайба пружинная | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
