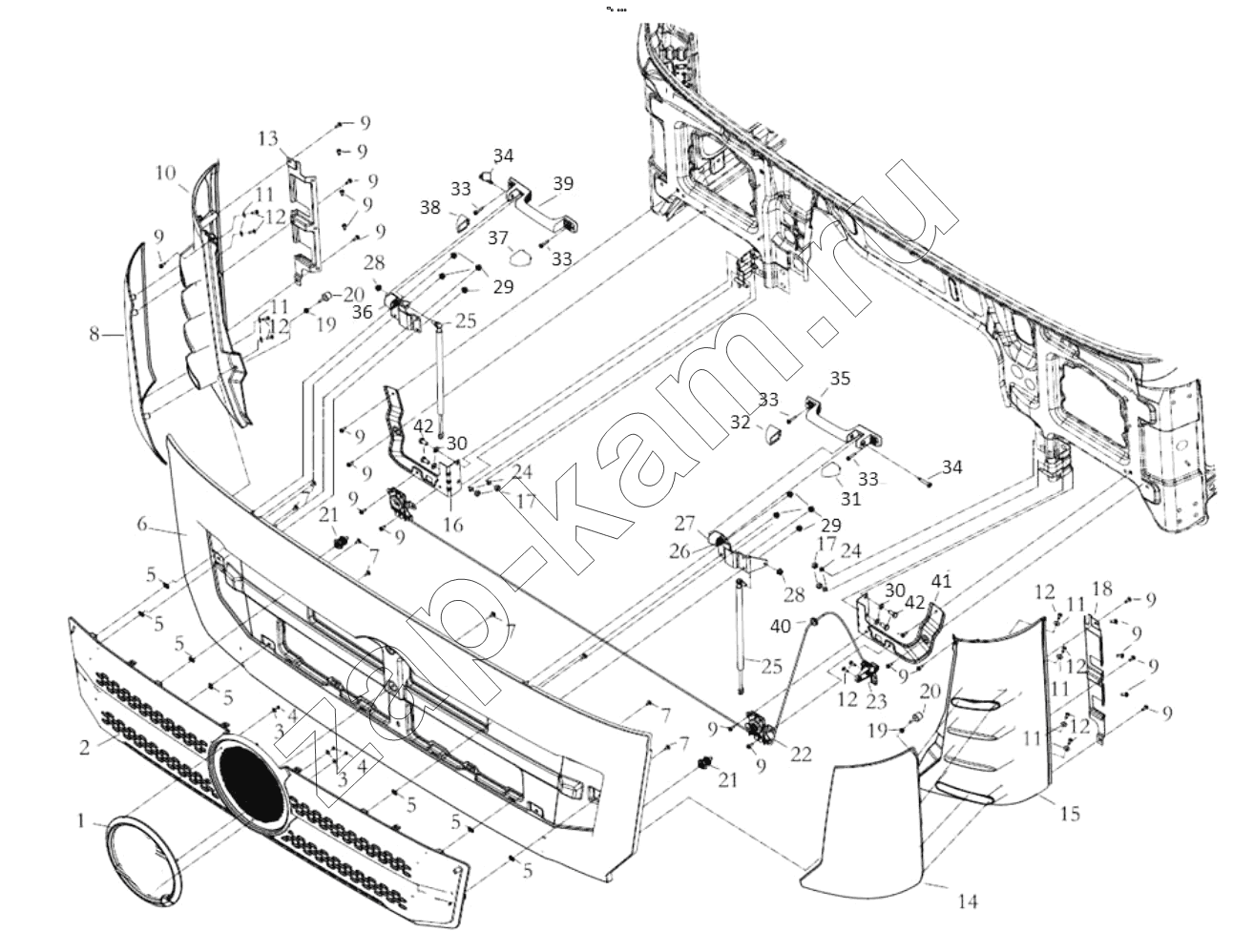

FRONT COVER
/ Shaanxi Shacman SX42584V324
1
2
3
3
4
4
5
5
5
5
5
5
5
6
7
7
7
7
8
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
10
11
11
11
11
11
12
12
12
12
12
12
13
14
15
16
17
17
18
19
19
20
20
21
21
22
23
24
24
25
25
26
27
28
28
29
29
30
30
31
32
33
33
33
33
34
34
35
36
37
38
39
40
41
42
42
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ14251950001 | Sq signboard | 1; | - | |
| 2 | DZ14251110021 | Grille | 1; | - | |
| 3 | Q40205 | Шайба | 3; | - | |
| 4 | Q340B05 | Гайка | 3; | - | |
| 5 | DZ14251110022 | Reed nut | 10; | - | |
| 6 | DZ14251110011 | Front cover body | 1; | - | |
| 7 | Q2214816 | Cross recessed round head tapping screws | 11; | - | |
| 8 | DZ14251110064 | Right spoiler corner plate outer plate | 1; | - | |
| 9 | Q2300616 | Cross groove pan head screw and flat washer assembly | 38; | - | |
| 10 | DZ14251110063 | Right spoiler corner plate inner plate | 1; | - | |
| 11 | Q40206 | Шайба | 8; | - | |
| 12 | Q2140616 | Болт | 10; | - | |
| 13 | DZ14251110065 | Right spoiler corner plate mounting plate | 1; | - | |
| 14 | DZ14251110060 | Left spoiler corner plate outer plate | 1; | - | |
| 15 | DZ14251110058 | Left spoiler corner plate inner plate | 1; | - | |
| 16 | DZ14251110073 | Front cover lock right mounting bracket | 1; | - | |
| 17 | Q340B10 | Nut | 4; | 80 ₽ | |
| 18 | DZ18251110061 | Right air defiector install board | 1; | - | |
| 19 | Q33006 | Nut | 2; | - | |
| 20 | DZ14251110030 | Buffer assy | 2; | - | |
| 21 | SZ111000711 | Mask lock lock | 2; | - | |
| 22 | DZ14251110080 | Lock assy | 1; | - | |
| 23 | DZ14251110075 | Unlock hand shank | 1; | - | |
| 24 | Q40310 | Шайба | 4; | - | |
| 25 | DZ14251110040 | Air spring assy | 2; | - | |
| 26 | DZ14251110051 | Limit block | 4; | - | |
| 27 | DZ14251110050 | Front lid hinge assy | 1; | - | |
| 28 | Q33008 | Nut | 2; | - | |
| 29 | Q32208 | Nut | 8; | - | |
| 30 | Q40110 | Шайба | 4; | - | |
| 31 | DZ14251110047 | Left front handrail shield | 1; | - | |
| 32 | DZ14251110046 | Left front handrail shield | 1; | - | |
| 33 | Q2300630 | Cross groove pan head screw and flat washer assembly | 4; | - | |
| 34 | DZ14251110045 | Self tapping screw | 2; | - | |
| 35 | DZ14251110044 | Left front handrail | 1; | - | |
| 36 | DZ14251110056 | Right hinge assy | 1; | - | |
| 37 | DZ14251110054 | Right front handrail shield | 1; | - | |
| 38 | DZ14251110055 | Right front handrail shield | 1; | - | |
| 39 | DZ14251110053 | Right front handrail | 1; | - | |
| 40 | DZ13241110076 | Cable sheath | 1; | - | |
| 41 | DZ14251110071 | Left front lid install trestle | 1; | - | |
| 42 | Q150B1020 | Болт | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
