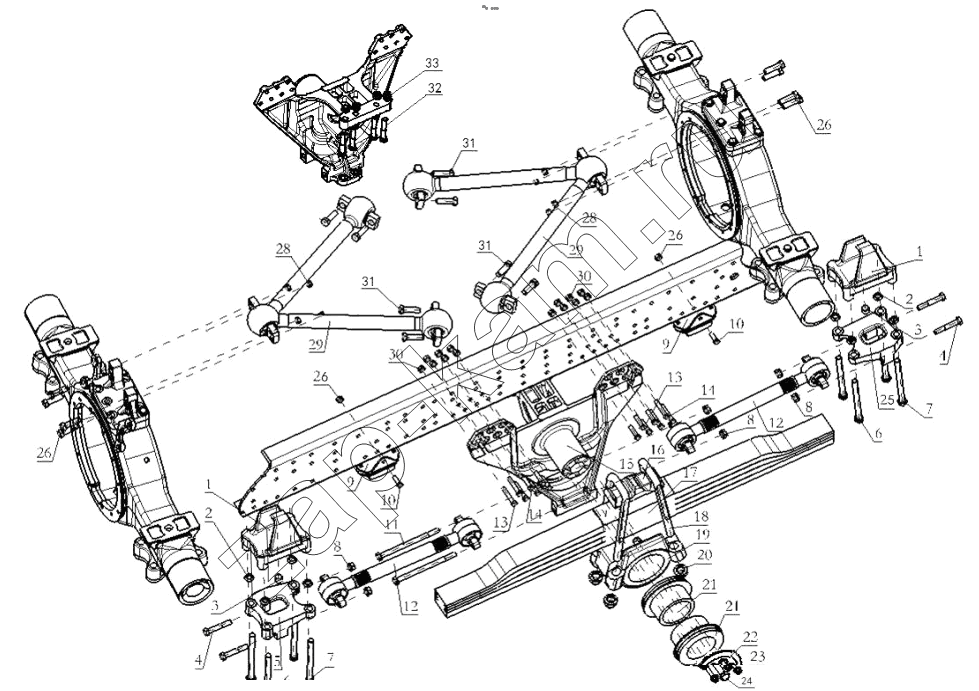

REAR SUSPENSION (DC95259520432)
/ Shaanxi Shacman SX42584V324
1
1
2
2
3
3
4
4
5
6
7
7
8
8
8
9
9
10
10
11
12
12
13
13
13
13
13
13
14
14
14
14
15
16
17
18
19
20
21
21
22
23
24
25
26
26
26
26
28
28
29
29
30
30
31
31
31
32
33
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| DZ97259520403 | DZ97259520403 | High-strength gasket | 2; | - | |
| 1 | SZ952000958 | Spring skateboard | 4; | - | |
| 2 | 81.90712.0908 | Spherical washer | 16; | - | |
| 3 | SZ952000903 | Positioning pin | 4; | - | |
| 4 | 06.01494.4718 | Hex head bolt | 8; | - | |
| 5 | 81.43242.0043 | Support plate | 2; | - | |
| 6 | Q151C20260TF2 | Hex head bolts | 8; | - | |
| 7 | Q151C20240TF2 | Hex head bolts | 8; | - | |
| 8 | 06.11241.0121 | Hex self-locking nut | 12; | - | |
| 9 | DZ95259526050 | Limit block assembly | 4; | - | |
| 10 | Q151B1455TF3 | Hex head bolts | 4; | - | |
| 11 | 06.01494.4734 | Hex head bolt | 4; | - | |
| 12 | DZ97259526196Q | Lower thrust rod assembly | 4; | - | |
| 13 | Q1811480TF3 | Hexagonal flange surface bearing surface toothed bolts-fine teeth | 8; | - | |
| 13 | 1811490TF6 | Hexagonal flange surface bearing surface toothed bolts-fine teeth | 4; | - | |
| 14 | Q1811465TF2 | Hexagonal flange surface bearing surface toothed bolts-fine teeth | 4; | - | |
| 14 | Q1811480TF3 | Hexagonal flange surface bearing surface toothed bolts-fine teeth | 8; | - | |
| 15 | DZ97259520401D | Balance shaft bracket | 2; | - | |
| 16 | Z95319526080 | Leaf spring pressure plate | 2; | - | |
| 17 | SZ952000779 | Rear leaf spring assembly | 2; | - | |
| 18 | SZ952000967 | Rear spring riding bolt | 4; | - | |
| 19 | DZ9114526111 | Leaf spring seat | 2; | - | |
| 20 | 81.90685.0400 | Ball nut | 8; | - | |
| 21 | 81.96210.0508 | Convex bushing | 4; | - | |
| 22 | DZ97259520402Q | Flange | 2; | - | |
| 23 | 1811680TF2 | Hexagonal flange surface bearing surface toothed bolt | 12; | - | |
| 24 | DZ97259520404 | Hexagonal head bolt | 2; | - | |
| 25 | 81.43242.0040 | Support plate | 2; | - | |
| 26 | 190003888620 | Self-locking nuts | 4; | - | |
| 27 | Q151B1885TF2 | Hex head bolts-fine pitch | 8; | - | |
| 28 | SZ952000867 | Dtf hexagonal flange nut | 8; | - | |
| 29 | DZ95259525152 | V-shaped thrust rod | 2; | - | |
| 30 | 06.11251.2005 | Гайка М14х1,5-10-МАN183-В1 | 28; | - | |
| 31 | 06.02202.1013 | Hexagon shoulder bolt | 8; | - | |
| 32 | Q151B18100TF2 | Hex bolt | 8; | - | |
| 33 | 190003888466 | Locking nut | 8; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
