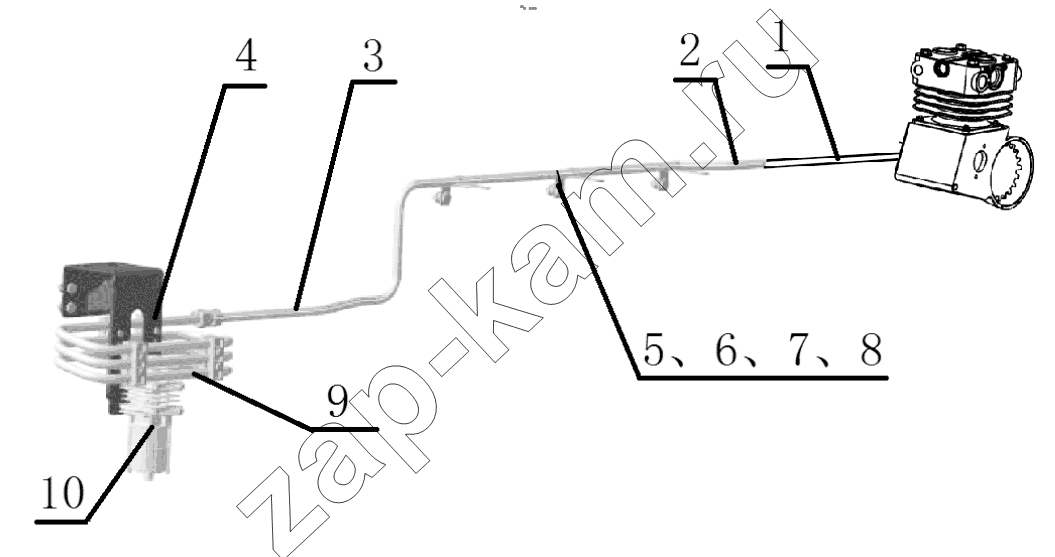

AIR COMPRESSOR PIPELINE
/ Shaanxi Shacman SX5256GJBMR364
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
5
6
7
8
9
9
9
9
9
9
9
10
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | DZ96319360085 | Steel pipe 20 air compressor/hose (assembly) | 1; | |
| 1 | DZ96189360149 | Steel Pipe 20 Air Compressor/Hose | 1; | |
| 1 | DZ97189360003 | Steel pipe 20 air compressor/hose | 1; | |
| 1 | DZ96259360178 | Steel pipe 20 air compressor/hose | 1; | |
| 1 | SZ903000820 | Steel Pipe 20 Air Compressor/Hose | 1; | |
| 1 | DZ95319360062 | Steel Pipe 20 Air Compressor/Hose | 1; | |
| 1 | DZ96259360240 | Steel pipe 20 air compressor/hose | 1; | |
| 1 | DZ97189360003 | Steel pipe 20 air compressor/hose | 1; | |
| 2 | DZ9100360442 | Шланг | 1; | |
| 2 | DZ93319360021 | Stainless steel metal hose | 1; | |
| 2 | DZ93319360020 | Stainless steel metal hose | 1; | |
| 2 | DZ93319360019 | Stainless steel metal hose | 1; | |
| 2 | DZ93319360018 | Stainless steel metal hose | 1; | |
| 2 | DZ93189360007 | Шланг | 1; | |
| 3 | DZ96189360151 | Tube 20 hose/straight | 1; | |
| 3 | DZ97259360082 | Tube 20 hose/straight | 1; | |
| 3 | DZ97259360057 | Tube 20 hose/straight | 1; | |
| 3 | DZ95319360060 | Tube 20 hose/straight | 1; | |
| 3 | DZ96319360097 | Tube 20 hose/straight | 1; | |
| 3 | DZ97259360087 | Tube 20 hose/straight | 1; | |
| 3 | DZ96319360087 | Tube 20 hose/straight | 1; | |
| 3 | DZ96319360099 | Tube 20 hose/straight | 1; | |
| 4 | DZ97259360516 | Oil-water separator bracket assembly | 1; | |
| 4 | DZ97259360012 | Oil-water separator bracket | 1; | |
| 5 | 199000360315 | Bracket | 3; | |
| 6 | Q68620 | Pipe clamp | 3; | |
| 7 | Q151B1430 | Q151B1430 | 3; | |
| 8 | 190003888458 | Гайка | 3; | |
| 9 | DZ97259360055 | Tube 20 straight-through/oil-water separator | 1; | |
| 9 | DZ97259360013 | Tube 20 hose/water separator | 1; | |
| 9 | DZ96319360083 | Tube 20 straight-through/oil-water separator | 1; | |
| 9 | DZ97259360013 | Tube 20 hose/water separator | 1; | |
| 9 | DZ95319360060 | Tube 20 straight-through/oil-water separator | 1; | |
| 9 | SZ903000759 | Pipe | 1; | |
| 9 | SZ903000749 | Tube 20 hose/water separator | 1; | |
| 10 | DZ97259360017 | Water separator | 1; | |
| 11 | DZ97259360038 | Tube 20 straight/straight | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
