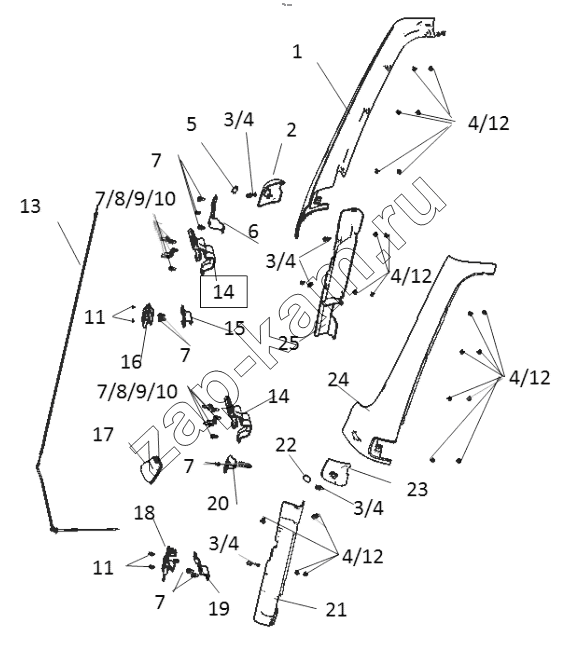

| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | DZ15221110081 | Right A column exterier panel | 1; | |
| 2 | DZ15221110085 | Right side hinge trim panel | 1; | |
| 3 | Q39748162 | Type A reed nut | 4; | |
| 4 | Q2214816 | Cross recessed round head tapping screws | 16; | |
| 5 | DZ15221110086 | Right side hinge trim panel cover | 1; | |
| 6 | DZ15221110083 | Right A column exterier panel install trestle | 1; | |
| 7 | Q1460820 | Hexagon head bolt, spring washer and flat washer assembly | 20; | |
| 8 | Q40308 | Шайба пружинная | 6; | |
| 9 | Q40208 | Шайба | 6; | |
| 10 | Q150B0830 | Болт | 6; | |
| 11 | Q1460616 | Hexagon head bolt, spring washer and flat washer assembly | 4; | |
| 12 | Q398B04 | Plastic nut | 14; | |
| 13 | DZ15221110100 | Lock cable assy | 1; | |
| 14 | DZ15221110110 | Hinge assy | 2; | |
| 15 | DZ15221110062 | Right front lid install trestle | 1; | |
| 16 | DZ15221110090 | Right lock assy | 1; | |
| 17 | DZ15221110120 | Unlock hand shank | 1; | |
| 18 | DZ15221110080 | Left lock assy | 1; | |
| 19 | DZ15221110061 | Left front lid install trestle | 1; | |
| 20 | DZ15221110073 | Left A column exterier panel install trestle | 1; | |
| 21 | DZ15221110077 | Left door hinge trim panel | 1; | |
| 22 | DZ15221110076 | Left side hinge trim panel cover | 1; | |
| 23 | DZ15221110075 | Left side hinge trim panel | 1; | |
| 24 | DZ15221110071 | Right A column exterier panel | 1; | |
| 25 | DZ15221110087 | Right door hinge trimpanel | 1; |
