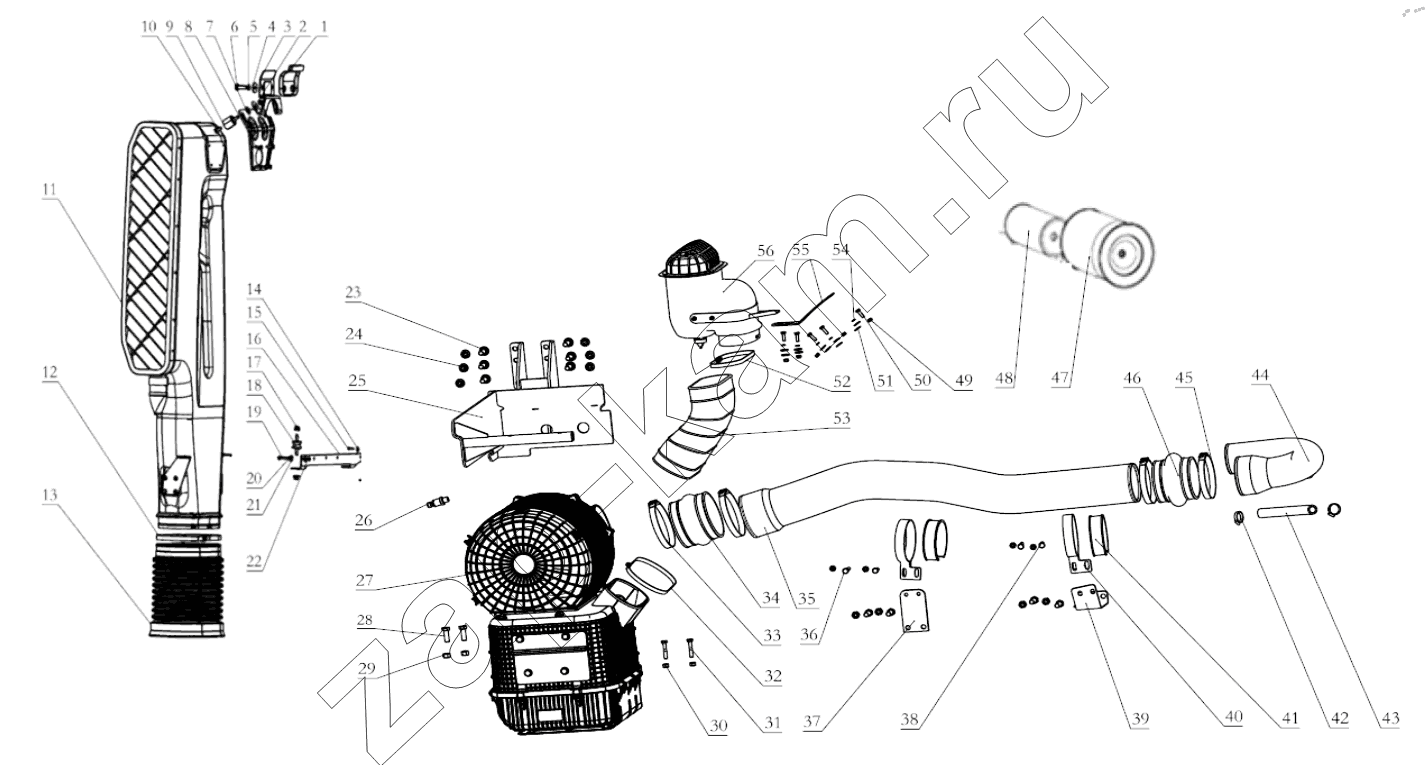

AIR CLEANING DEVICE
/ Shaanxi Shacman SX5315GJB5V326C (X3000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
44
47
48
49
50
51
52
53
54
55
56
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 81.62940.5011 | Bracket | 1; | - | |
| 2 | Q33208T2F3 | Hex nut | 2; | - | |
| 3 | 81.08240.5201 | Braclcet | 1; | - | |
| 4 | Q402B10 | Washer | 2; | - | |
| 5 | Q40310 | Шайба | 2; | - | |
| 6 | Q150B1030T1F3 | Hex screw | 2; | - | |
| 7 | Q402B08 | Hex bolt | 9; | - | |
| 8 | Q150B0620 | Hex.screw | 12; | - | |
| 9 | 81.96210.0387 | Buffer mass | 2; | - | |
| 10 | Q150B0816 | Болт | 2; | - | |
| 11 | DZ97259190400 | Intake pipe assembly | 1; | - | |
| 12 | DZ9002530001 | Clip | 2; | - | |
| 13 | DZ93319190002 | Intake piping | 1; | - | |
| 14 | Q402B05 | Washe | 1; | - | |
| 15 | Q2714219 | Cross groove pan head self-tapping screw | 1; | - | |
| 16 | DZ97259190410 | Bracket | 1; | - | |
| 17 | 06.11069.0157 | Гайка М8-8SВ-8-SW13-МАN183-В1 | 4; | - | |
| 18 | 81.96210.0289 | Втулка | 2; | - | |
| 19 | Q150B0625 | Hex. Screw | 3; | - | |
| 20 | Q40306 | Шайба | 3; | - | |
| 21 | Q402B06 | Big Washer | 6; | - | |
| 22 | Q340B06 | Nut | 1; | - | |
| 23 | Q1811450TF3 | Hex Flange Face Bearing Bolts-Fine | 6; | - | |
| 24 | 06.11251.2005 | Гайка М14х1,5-10-МАN183-В1 | 6; | - | |
| 25 | DZ96319190845 | Bracket | 1; | - | |
| 26 | DZ97189711320 | Alarm switch | 1; | - | |
| 27 | DZ91259190042 | Oil-bath air cleaner | 1; | - | |
| 28 | Q151B1440TF3 | Hex.bolt | 6; | - | |
| 29 | 190003888620 | Self-locking nuts | 6; | - | |
| 30 | Q33210T2F3 | Hex nut | 6; | - | |
| 31 | Q150B1055T1F3 | Hex screw | 2; | - | |
| 32 | DZ9002530001 | Clip | 1; | - | |
| 33 | DZ9003532166 | Хомут | 2; | - | |
| 34 | DZ9112190336 | Патрубок | 1; | - | |
| 35 | DZ97259190514 | Hose | 1; | - | |
| 36 | Q150B1050 | Hex.screw | 2; | - | |
| 37 | DZ96259191009 | Bracket | 1; | - | |
| 38 | Q150B1030T1F3 | Hex screw | 2; | - | |
| 39 | DZ97259190437 | Bracket | 1; | - | |
| 40 | DZ93259190954 | Clip | 2; | - | |
| 41 | DZ93259190952 | Cushion blocking | 2; | - | |
| 44 | DZ96319190851 | Hose | 1; | - | |
| 47 | SZ919000894 | Main filter element | 1; | - | |
| 48 | SZ919000895 | Safe filter element | 1; | - | |
| 49 | Q340B08T2F3 | Type 1 hex nut | 5; | - | |
| 50 | Q150B0825T1F3 | Hex bolt | 5; | - | |
| 51 | Q402B08 | Hex bolt | 10; | - | |
| 52 | DZ9114190934 | Clip | 1; | - | |
| 53 | SZ919000799 | Hose | 1; | - | |
| 54 | Q40308 | Шайба пружинная | 5; | 10 ₽ - 60 ₽ | |
| 55 | 81.08240.0213 | Кронштейн | 1; | - | |
| 56 | DZ95259190532 | Hose | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
