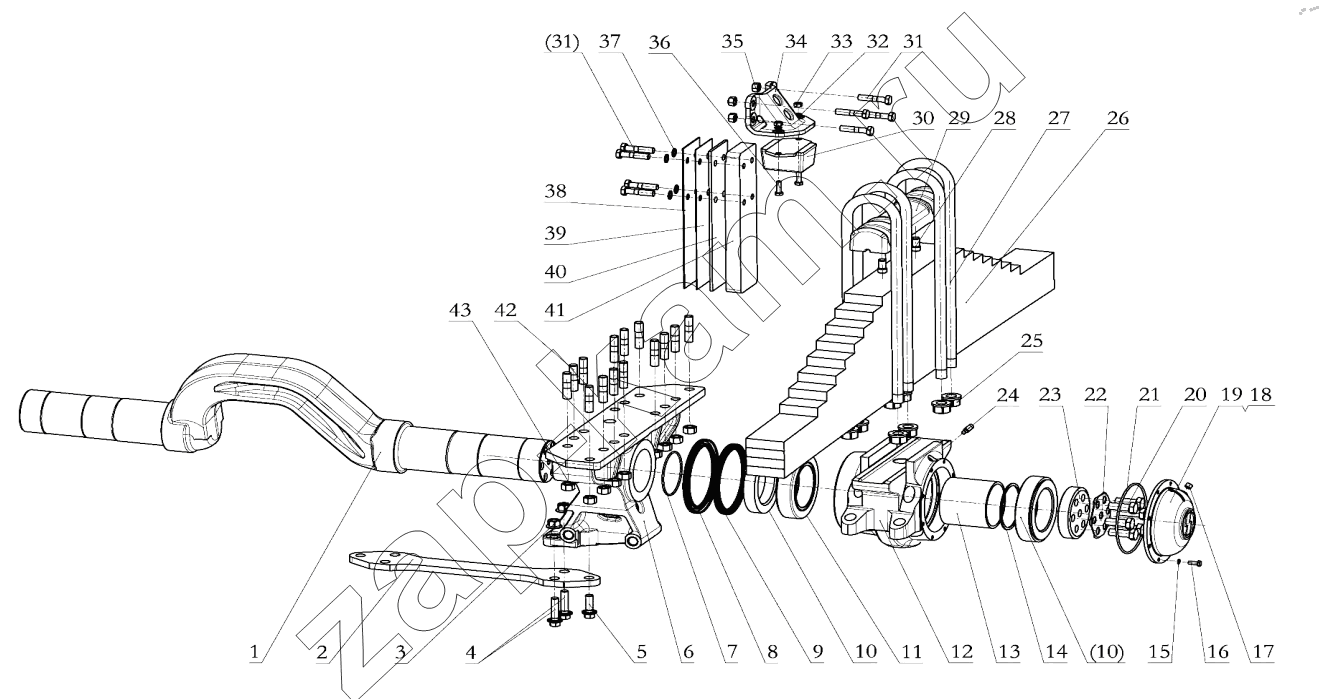

REAR SUSPENSION I (DC97319520813)
/ Shaanxi Shacman SX5315GJB5V326C (X3000)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
14
14
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ95259520865 | Balancing Shaft | 1; | - | |
| 2 | DZ95259520826 | Bracket lower connecting plate | 1; | - | |
| 3 | Q33016T13F3 | Locking nut | 4; | - | |
| 4 | Q1801660TF3 | Hexagon flange bearing face bolt with tooth | 4; | - | |
| 5 | Q1801645TF3 | Hex screw | 2; | - | |
| 6 | DZ95259520825 | Bracket | 2; | - | |
| 7 | DZ91259520504 | Seal ring | 2; | - | |
| 8 | DZ91259520512 | Seal ring | 2; | - | |
| 9 | DZ91259520506 | Shaft seal | 2; | - | |
| 10 | DZ91259520511 | Bearing seal cover | 2; | - | |
| 11 | 199114520042 | Подшипник | 4; | - | |
| 12 | DZ91259520038 | Balance shaft housing | 2; | - | |
| 13 | 199014520191 | Втулка | 2; | - | |
| 14 | 199014520192 | Positioning washer | 2; | - | |
| 14 | AZ9100520008 | Positioning washer | 2; | - | |
| 14 | 199114520059 | Positioning washer | 2; | - | |
| 14 | 199014520306 | Positioning washer | 2; | - | |
| 14 | 199014520303 | Positioning washer | 2; | - | |
| 14 | 199014520194 | Positioning washer | 2; | - | |
| 14 | 199014520193 | Positioning washer | 2; | - | |
| 15 | Q40308 | Шайба пружинная | 16; | 10 ₽ - 60 ₽ | |
| 16 | Q150B0822T1F3 | Hex head bolt | 16; | - | |
| 17 | 190003962021 | Hex plug screw | 2; | - | |
| 18 | DZ91259520211 | Shell cover | 1; | - | |
| 19 | DZ91259520212 | Shell cover | 1; | - | |
| 20 | Q151B1850TF3 | Hex screw | 12; | - | |
| 21 | DZ91259520505 | O-ring seal | 2; | - | |
| 22 | DZ95259520845 | Stop washer | 2; | - | |
| 23 | DZ95259520844 | Bearing block | 2; | - | |
| 24 | DZ95259520310 | Vent bolt assembly | 2; | - | |
| 25 | DZ91259527024 | Dtf hex flange nut | 16; | - | |
| 26 | DZ95259520831 | Rear leaf spring assembly | 2; | - | |
| 27 | 199114520146 | Rear spring riding bolt | 8; | - | |
| 28 | 199000520006 | Направляющий палец | 4; | - | |
| 29 | SZ952000770 | Riding bolt seat | 2; | - | |
| 30 | SZ952000730 | Buffer block assembly | 4; | - | |
| 31 | Q151B1465T1F3 | Hex head bolt-fine teeth | 32; | - | |
| 32 | Q40310 | Шайба | 8; | - | |
| 33 | Q340B10T2F3 | Type 1 hex nut | 8; | - | |
| 34 | DZ95259521011 | Buffer block bracket | 4; | - | |
| 35 | 190003888620 | Self-locking nuts | 16; | - | |
| 36 | Q150B1030T1F3 | Hex screw | 8; | - | |
| 37 | Q40314 | Шайба пружинная | 16; | - | |
| 38 | DZ95259520301 | Balance board | 4; | - | |
| 39 | DZ95259520302 | Balance board | 4; | - | |
| 40 | DZ95259520306 | Balance board | 4; | - | |
| 41 | DZ95319520003 | Plate | 4; | - | |
| 42 | 199014520227 | Stud bolts | 28; | - | |
| 43 | 190003871353 | Type 1 Hex Nut - Fine Tooth - A-- Nut | 28; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
