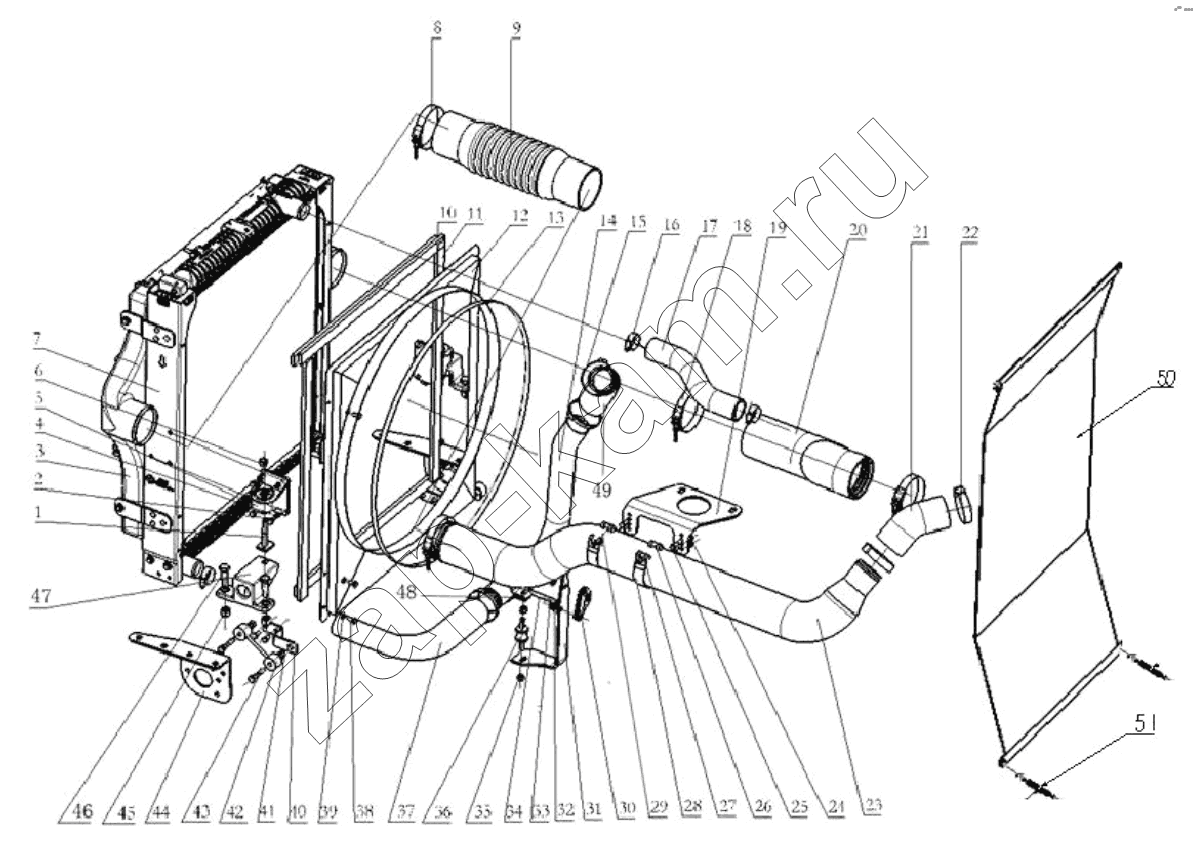

COOLING SYSTEM/WP10/NEW M3000/850 FRAME
/ Shaanxi SX32566R384
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
40
40
40
41
42
43
44
45
45
46
47
47
50
50
51
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | DZ9112538040 | Опора в сборе | 2; | |
| 2 | Q150B0816 | Болт | 8; | |
| 3 | DZ96259531030 | CAC | 1; | |
| 4 | Q40308 | Шайба пружинная | 8; | |
| 5 | 81.06225.6008 | Держатель радиатора в сборе | 2; | |
| 6 | 06.11240.0411 | Гайка | 2; | |
| 7 | DZ96259532033 | Radiator | 1; | |
| 7 | DZ96259532030 | Radiator | 1; | |
| 8 | DZ9003533115 | Clip | 4; | |
| 9 | DZ93259535322 | Rubber hose | 1; | |
| 10 | DZ96259537015 | Hermetical pastern | 2; | |
| 11 | DZ96259537017 | Hermetical pastern | 2; | |
| 12 | DZ96259536048 | Air duct assembly | 1; | |
| 12 | DZ96259536043 | Air duct assembly | 1; | |
| 13 | DZ91259538602 | Хомут | 1; | |
| 14 | DZ96259534078 | Outlet rubber hose | 1; | |
| 14 | DZ96259534065 | Outlet rubber hose | 1; | |
| 15 | Q67683 | Хомут | 3; | |
| 16 | Q67664 | Clip | 3; | |
| 17 | DZ96259535065 | In rubber hose | 1; | |
| 18 | DZ9003532115 | Хомут | 2; | |
| 19 | DZ96259538029 | Bracket | 1; | |
| 20 | DZ96259535064 | Rubber hose | 1; | |
| 21 | DZ93259535332 | Rubber hose | 1; | |
| 22 | DZ9003533084 | Clip | 2; | |
| 23 | DZ96259534064 | Steel tube | 1; | |
| 24 | Q150B0820 | Болт | 4; | |
| 25 | Q33208 | Гайка | 4; | |
| 26 | DZ9100530053 | Dowel | 2; | |
| 27 | DZ9100530052 | Dowel | 2; | |
| 28 | DZ9100530051 | Clip | 2; | |
| 29 | Q218B0860 | Hex screw | 2; | |
| 30 | DZ93259538077 | Bracket buffer | 1; | |
| 31 | DZ96259538038 | Bracket | 1; | |
| 32 | Q40110 | Шайба | 2; | |
| 33 | Q40310 | Шайба | 2; | |
| 34 | Q150B1090 | Hex.screw | 1; | |
| 34 | Q150B1030 | Болт | 1; | |
| 35 | Q33210 | Гайка | 2; | |
| 36 | DZ93259537002 | Buffer | 1; | |
| 37 | DZ93259535325 | Rubber hose | 1; | |
| 38 | Q150B0816 | Болт | 6; | |
| 39 | Q40308 | Шайба пружинная | 6; | |
| 40 | DZ96259538076 | Right connect bracket | 1; | |
| 40 | DZ96259538075 | Left connect bracket | 1; | |
| 40 | DZ96259538034 | Right connect bracket | 1; | |
| 40 | DZ96259538033 | Left connect bracket | 1; | |
| 41 | Q33210 | Гайка | 4; | |
| 42 | 81.06245.0043 | Опора в сборе | 2; | |
| 43 | Q150B1050 | Hex.screw | 4; | |
| 44 | DZ95259538072 | Support | 2; | |
| 45 | Q32214 | Hex nut | 4; | |
| 45 | Q40214 | Large gasket | 4; | |
| 46 | Q150B1445 | Болт | 4; | |
| 47 | DZ96259538019 | Left support | 1; | |
| 47 | DZ96259538020 | Rihgt support | 1; | |
| 48 | DZ93259538605 | Water pipe clip | 1; | |
| 49 | DZ95259535029 | Rubber hose | 1; | |
| 50 | DZ96259537005 | Dustproof net | 1; | |
| 50 | DZ96259537003 | Dustproof net | 1; | |
| 51 | DZ95259537001 | Spring | 2; |
