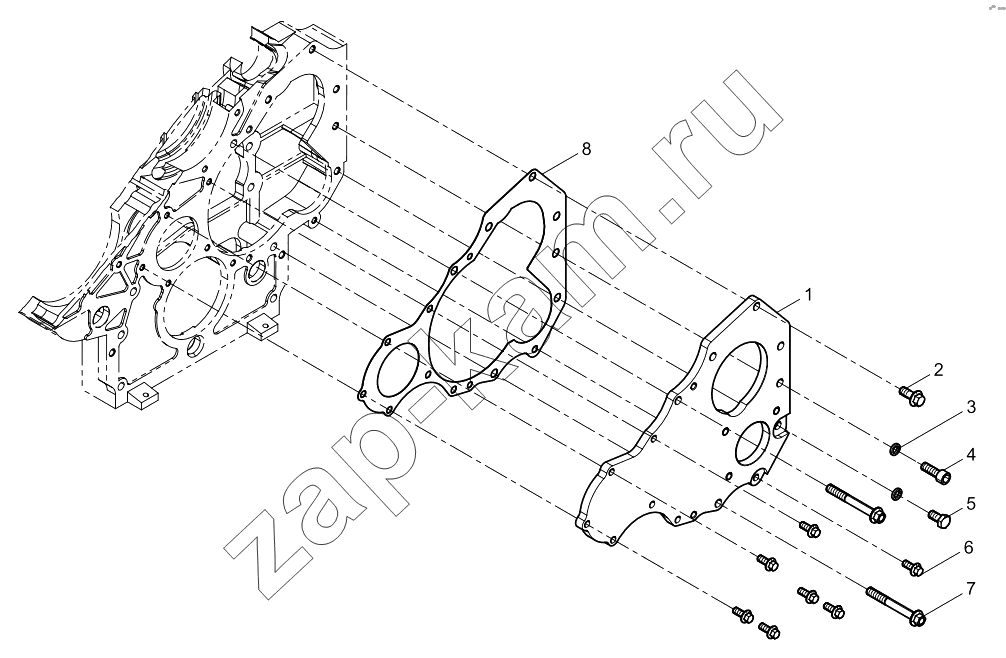

5. FRONT COVER GROUP

FRONT COVER GROUP
/ Shaanxi SX32566R384

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX1255GP4 (2016) Shacman SX13164N456 Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX32586T384 (X3000) Shacman SX3258DR384 (F3000) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316DV386 Shacman SX3316HT406C Shacman SX331853386 (X5000) (2023) Shacman SX331863366 (X3000) (2021) Shacman SX33186T386 (X3000) Shacman SX3318DT366 (F3000) Shacman SX3318HT366TL Shacman SX4188YY381 Shacman SX4255DV385 (2011) Shacman SX42564V324 (X3000) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5315GJB5V326C (X3000) (2021) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4 SX32566R384

Схема > Не выбрано LEFT FOOT PANEL FOR CAB RIGHT FOOT PANEL FOR CAB LEFT BRACKET ASSEMBLY LEFT FOOT PANEL RIGHT BRACKET ASSEMBLY RIGHT FOOT PANEL TOOL BOX CAB TILTING MECHANISM L.H. DRIVE VEHICLE FRONT BEARING SPRING CAB LOCKING DEVICE SEAT SAFETY BELT LOWER BERTH HIGH-ROOF CAB INTERIOR TRIM PANEL HIGH ROOF CAB SUNDRIES BOX BODY LEFT SIDE INNER GUARD PLATE RIGHT SIDE INNER GUARD PLATE REAR INNER GUARD PLATE ASSEMBLY FLOOR MATS HEAT INSULATION WINDSCREEN SIDE-WINDOW AND REAR-WINDOW DOOR LAMP SWITCH INNER LIGHT CLEARANCE LAMP SIDE TURN SIGNAL LAMP TOP CEILING WIRE HARNESS FLOOR WIRE HARNESS DOOR WIRE HARNESS AIR CONDITIONING CONTROLLER WIPER ASSEMBLY WATER CONTAINER VIEW MIRROR AIR CONDITIONING SYSTEM AIR CONDITIONER BODY AIR DUCT AIR CONDITIONING UNDERBODY PART (NEW M3000 / WP10 FOUR-GATE / SIDE-MOUNTED COMPRESSOR) H3000 CAB SUN VISOR HEAT INSULATION CAB OSTENTATIOUS SCUTCHEON GLISTEN MARK DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY FEEDBACK RADIO SWITCH CIGAR LIGHTER ANTENNA, SPEAKER RIGHT HEAD LIGHT WIRE HARNESS ELECTRIC HORN, AIR HORN SOLENOID VALVE AIR TANK FIXING (C4) ACCELEROGRAPH CONTROL DEVICE CHASSIS ELECTRICAL APPLIANCES/ADDITIONAL/NEW ELECTRIC REVERSAL/COLD REGIONS CAB VEHICLE TYPE LETTERS H3000 HALF HIGH ROOF CAB ASSY H3000 FRONT MASK DASHBOARD LH, RH AND LOW RIGHT BRACKET DASHBOARD ASSY DRIVER KNEE BOLSTER ASSY PASSENGER KNEE BOLSTER ASSY CAB FENDER FENDER CAB HYDRAULIC TILTING EQUIPMENT DRAW GEAR AIR COMPRESSOR PIPELINE PULL-TYPE CLUTCH OPERATING DEVICE ENGINE BLOCK GROUP CYLINDER BLOCK PREASSEMBLY TIMING GEAR HOUSING GROUP CRANKSHAFT GROUP CRANKSHAFT ASSEMBLY CRANKSHAFT SUBASSEMBLY PISTON AND CONNECTING ROD GROUP PISTON ASSEMBLY PISTON RING SET CONNECTING ROD ASSEMBLY CYLINDER HEAD GROUP CYLINDER HEAD SUBASSEMBLY VALVE TRAIN GROUP CAMSHAFT ASSEMBLY IDLER GEAR ASSEMBLY ROCKER ARM SHAFT SET ROCKER ARM SET ROCKER ARM ASSEMBLY EVB BRACKET ASSEMBLY OIL PUMP GROUP OIL PUMP IDLE GEAR SET OIL COOLER GROUP COMMON RAIL SYSTEM ASSEMBLY HIGH PRESSURE PUMP GROUP HIGH-PRESSURE FUEL PIPE ASSEMBLY FRONT COVER GROUP OIL-GAS SEPARATOR GROUP OIL-GAS SEPARATOR ASSEMBLY DIPSTICK GROUP DIPSTICK ASSEMBLY OIL FILLING PIPE GROUP FLYWHEEL HOUSING GROUP OIL COOLER CAP GROUP FLYWHEEL GROUP CRANKSHAFT PULLEY GROUP CYLINDER HEAD COVER GROUP WATER OUTLET PIPE GROUP WATER-OUTLET PIPE ASSEMBLY WATER PUMP GROUP WATER PIPE CONNECTOR GROUP FAN AND HUB GROUP TENSIONER AND BELT GROUP OIL STRAINER GROUP OIL FILTER GROUP OIL FILTER FUEL FILTER GROUP PRIMARY FUEL FILTER SET FUEL COARSE FILTER FINE FUEL FILTER SET FINE FILTER LOW PRESSURE FUEL PIPE GROUP ELECTRONIC CONTROL SYSTEM HARNESS AND SENSOR GROUP SPEED SENSOR OIL PRESSURE SENSOR FUEL INJECTOR GROUP ADAPTER OF HIGH PRESSURE PIPE ALTERNATOR GROUP AIR CONDITIONING COMPRESSOR GROUP STARTER MOTOR GROUP INTAKE MANIFOLD GROUP INTAKE MANIFOLD ASSEMBLY EXHAUST MANIFOLD GROUP TURBOCHARGER GROUP TURBOCHARGER OIL PIPE GROUP COMPRESSOR PIPE GROUP INTERCOOLER GROUP AIR COMPRESSOR GROUP AIR COMPRESSOR ASSEMBLY HYDRAULIC PUMP GROUP OIL PAN SET OIL PAN SET ENGINE BRACKET GROUP PARTS BOX GROUP FUEL SYSTEM PROTECTOR PACKING BOX CHASSIS PARTS GROUP FRAM ASSY SPECIAL AND ON-BOARD TOOLS О¦430 PULL DIAPHRAGM CLUTCH EXHAUST BRAKE CONTROL CLUTCH AND TRANSMISSION HOUSING ASSEMBLY TWO-AXIS ASSEMBLY INTERMEDIATE SHAFT ASSEMBLY INPUT SHAFT ASSEMBLY REVERSE INTERMEDIATE SHAFT ASSEMBLY COVER ASSEMBLY CONTROL UNIT ASSEMBLY AIR VALVE ASSEMBLY AIR FILTER REGULATOR ASSEMBLY MAIN BOX OUTPUT SHAFT BEARING ASSEMBLY VICE BOX SPINDLE ASSEMBLY VICE BOX LEFT AND RIGHT MIDDLE SHAFT BACK COVER ASSEMBLY VICE BOX CYLINDER ASSEMBLY QH50 PTO OPTIONAL SUBSTITUTE POWER TAKE-OFF GAS CONTROL DC93189270201 AIR OPERATOR FOR POWER TAKE-OFF CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CHASSIS ELECTRICS / ADDITIONAL / FUEL TANK EXTENSION LINE (0.5M) / COLD REGION CHASSIS ELECTRICAL/ADDITIONAL/ELECTRICALLY HEATED FUEL TANK (NEW) CHASSIS ELECTRICAL APPLIANCES/ADDITIONAL/ELECTRONIC CONTROL LANDKING II/8Г—4/COLD REGION CHASSIS ELECTRICAL APPLIANCES/ADDITIONAL/ELECTRONIC CONTROL LANDKING II/8Г—4/COLD REGION CHASSIS ELECTRIC/NEW M3000/ADDITIONAL/K40/6x4/WABCO 6ABS WHEELING SYSTEM PARKING WEDGES CHASSIS ELECTRICAL APPLIANCES/WP10/COLD REGIONS VALVE VEHICLE SCUTCHEON STEERING HYDRAULIC DEVICE BATTERY BOX MOUNTING BATTERY BOX MAIN POWER SWITCH (CENTER-OFF) CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT PROPELLER SHAFT SYSTEM FRONT SUSPENSION (DC95259690913) UREA SUPPLY TANK DOUBLE-STAGE REDUCTION DRIVE AXLE MIDDLE BRIDGE HOUSING (STR SUSPENSION) DOUBLE-STAGE REDUCTION DRIVE AXLE REAR AXLE HOUSING (STR SUSPENSION) DOUBLE-STAGE REDUCTION DRIVE MIDDLE BRIDGE MIDDLE SECTION DOUBLE-STAGE REDUCTION DRIVE REAR AXLE MIDDLE SECTION DOUBLE REDUCTION DRIVE AXLE WHEEL SIDE REAR SUSPENSION I REAR SUSPENSION II (DC95319520801) CAB BRAKE DEVICE CAB BRAKE DEVICE SINGLE SHAFTS STEERING TRANSMISSION DEVICE STEERING COLUMN ADJUSTABLE INSTRUMENT CLUSTER COMBINATION SWITCH COMBINATION SWITCH WIRING HARNESS VALVE FUSE BOX, RELAY INSTRUCTIONS MULTI-POWER FUEL SAVING SWITCH CONTROLLER BODY ELECTRICAL BOX MOUNTING PLATE ECU ELECTRIC PLATE MAIN WIRE HARNESS OF CAB RELAY FUSE WIRING ABS CONTROLLER INSURANCE, RELAY SWITCH ROCKER SWITCH FUSES, RELAYS WIRING METAL BUMPER DEFENSIVE DRILL PROTECTION FRAME CHASSIS ELECTRICAL APPLIANCES/NEW M3000/NON-TRACTOR/K40/6Г—4/REAR OVERHANG 1000/BATTERY 1500/COLD REGION CHASSIS ELECTRICAL APPLIANCES/NEW M3000/NON-TRACTOR/K40/6Г—4/REAR OVERHANG 1000/BATTERY 1500/COLD REGION CHASSIS ELECTRICAL APPLIANCES/NEW M3000/NON-TRACTOR/K40/6Г—4/REAR OVERHANG 1000/BATTERY 1500/COLD REGION CHASSIS ELECTRICAL APPLIANCES/ADDITIONAL/START AND STOP UNDER THE VEHICLE/INSTALLED ON THE BATTERY BOX/COLD REGIONS CHASSIS ELECTRICAL APPLIANCES/NEW M3000/WP10E40/LARGE INTEGRATION/BATTERY 1500/DUMP TRUCK/POWER OPTIMIZATION/COLD REGION CHASSIS ELECTRICAL APPLIANCES/NEW M3000/WP10E40/LARGE INTEGRATION/BATTERY 1500/DUMP TRUCK/POWER OPTIMIZATION/COLD REGION CHASSIS ELECTRICAL APPLIANCES/NEW M3000/WP10E40/LARGE INTEGRATION/BATTERY 1500/DUMP TRUCK/POWER OPTIMIZATION/COLD REGION CHASSIS ELECTRICAL APPLIANCES/NEW M3000/WP10E40/LARGE INTEGRATION/BATTERY 1500/DUMP TRUCK/POWER OPTIMIZATION/COLD REGION CHASSIS ELECTRICAL APPLIANCES/NEW M3000/WP10E40/LARGE INTEGRATION/BATTERY 1500/DUMP TRUCK/POWER OPTIMIZATION/COLD REGION TAIL LIGHT BRACKET/M3000/DUMP TRUCK LOWERING/WELDING PROTECTIVE COVER AIR CLEANING DEVICE RADIATOR PROTECTOR SYSTEM SHIFTING DEVECE SINGLE FRONT AXLE BRAKE DEVICE/7.5T DRUM FRONT AXLE/WITH ABS CROSS MEMBER COOLING SYSTEM/WP10/NEW M3000/850 FRAME EXPANSION BOX SYSTEM EXPANSION BOX SYSTEM 500L ALUMINUM ALLOY FUEL TANK ASSEMBLY ENGINE SUSPENSION TRANSMISSION SUSPENSION FRONT CARFRAME AFFIX (DC96259800113)

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во
1	612600014471		Timing Gear Chamber Cover	1;
2	90011430008		Hexagon screw	1;
3	90003931122		Шайба В10 D00127	2;
4	90003862532		Винт под угольник М10х30 D00912	1;
5	90011350026		Hexagon bolt	1;
6	90011430016S		Hexagon flange bolt	7;
7	612600061711		Hexagon Flange with Tooth Bolt	2;
8	612600014722		Gasket	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
