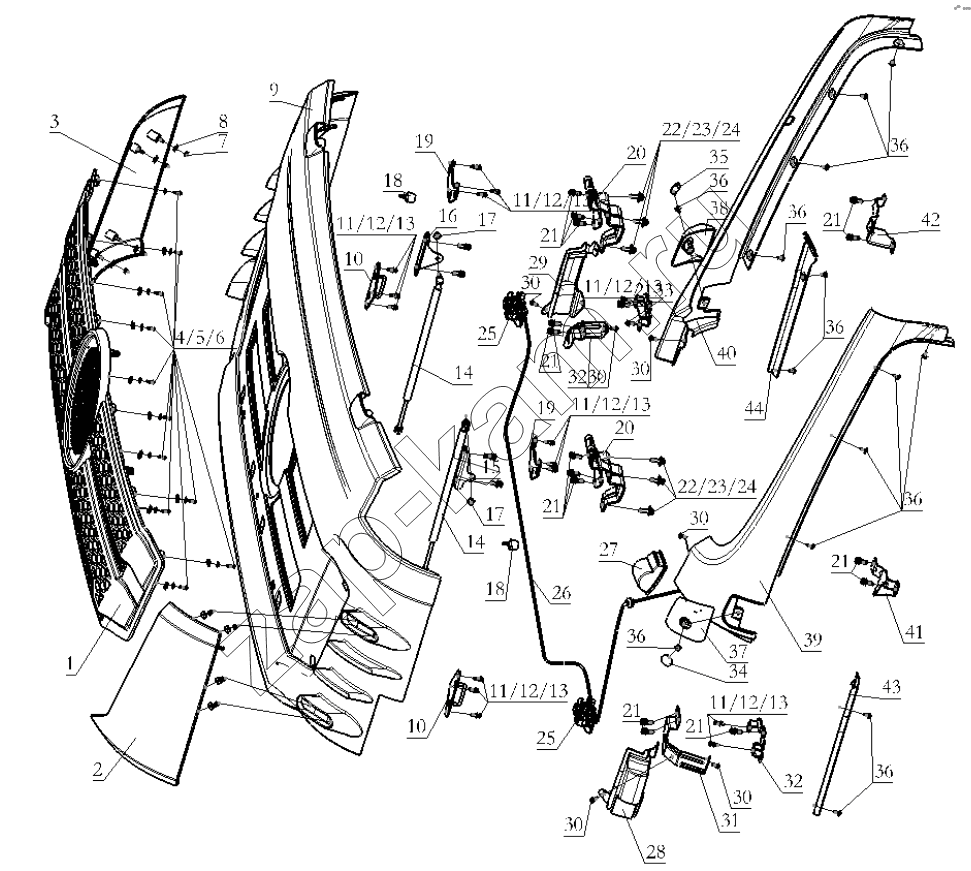

H3000 FRONT MASK
/ Shaanxi SX32566R384
1
2
3
4
5
6
7
8
9
10
10
11
11
11
11
11
11
12
12
12
12
12
12
13
13
13
13
13
13
14
14
15
16
17
17
18
18
19
19
20
20
21
21
21
21
21
21
21
22
22
23
23
24
24
25
25
26
27
28
29
30
30
30
30
30
30
31
32
32
34
35
36
36
36
36
36
36
36
37
38
39
40
41
42
43
44
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | DZ15221114016 | Grille | 1; | |
| 2 | DZ15221114021 | Left air defiector board assy | 1; | |
| 3 | DZ15221114022 | Right air defiector board assy | 1; | |
| 4 | Q2714819 | Grooved oval head screw | 12; | |
| 5 | Q402B05 | Washe | 12; | |
| 6 | 06.13189.0099 | Пластина-фиксатор SТ4,8-2-МАN183-В1 | 12; | |
| 7 | Q340B06T13F3 | Hexagon nut | 8; | |
| 8 | Q402B06 | Big Washer | 8; | |
| 9 | DZ15221114025 | Front lid | 1; | |
| 10 | DZ15221114116 | Front lid Lock Ring | 2; | |
| 11 | Q150B0620 | Hex.screw | 12; | |
| 12 | Q401B06 | Flat washer | 12; | |
| 13 | Q40306 | Шайба | 12; | |
| 14 | DZ15221112040 | Air spring sssy | 2; | |
| 15 | DZ15221110021 | Front cover gas spring left bracket | 1; | |
| 16 | DZ15221110022 | Right air spring bracket | 1; | |
| 17 | Q33008 | Nut | 2; | |
| 18 | DZ15221114040 | Buffer assy | 2; | |
| 19 | DZ15221110120 | Unlock hand shank | 2; | |
| 20 | DZ15221110110 | Hinge assy | 2; | |
| 21 | Q1460825 | Hexagonal bolt, spring washer and flat washer molectron | 18; | |
| 22 | Q150B0830T1F3 | Hex bolt | 6; | |
| 23 | q40308 | Washer | 6; | |
| 24 | Q402B08 | Hex bolt | 6; | |
| 25 | DZ15221114130 | Lock assy | 2; | |
| 26 | DZ15221114120 | Lock cable assy | 1; | |
| 27 | DZ15221110120 | Unlock hand shank | 1; | |
| 28 | DZ15221114077 | left door hinge trim panel | 1; | |
| 29 | DZ15221114078 | Right door hinge trim panel | 1; | |
| 30 | Q2300616 | Cross groove pan head screw and flat washer assembly | 6; | |
| 31 | DZ15221112065 | Left door hinge trim panel Head screw install trestle | 1; | |
| 32 | DZ15221112066 | Right door hinge trim panel Head screw install trestle | 1; | |
| 33 | DZ15221114111 | Left front lid install trestle | 1; | |
| 34 | DZ15221114112 | Right front lid install trestle | 1; | |
| 35 | DZ15221110076 | Left side hinge trim panel cover | 1; | |
| 36 | DZ15221110086 | Right side hinge trim panel cover | 1; | |
| 37 | DZ15221114075 | left side hinge trim panel | 1; | |
| 38 | DZ15221114085 | Right side hinge trim panel | 1; | |
| 39 | DZ15221114071 | left A column exterier panel | 1; | |
| 40 | DZ15221114072 | Right A column exterier panel | 1; | |
| 41 | DZ15221112074 | left A column exterier panel install trestle | 1; | |
| 42 | DZ15221112084 | Right A column exterier panel install trestle | 1; | |
| 43 | DZ15221112078 | left A column bottom panel | 1; | |
| 44 | DZ15221112088 | Right A column bottom panel | 1; | |
| 45 | Q2214816 | Cross recessed round head tapping screws | 14; |
