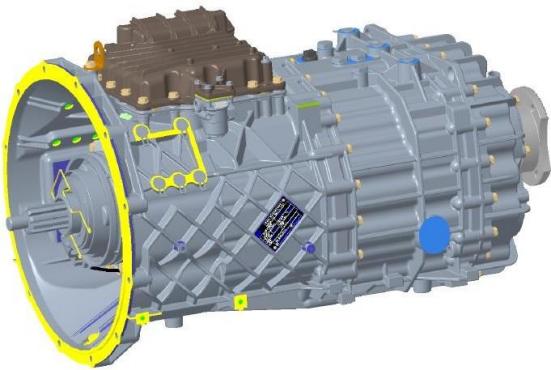

Каталог запасных частей КПП FastGeаr F12JZ24A + FHB400A

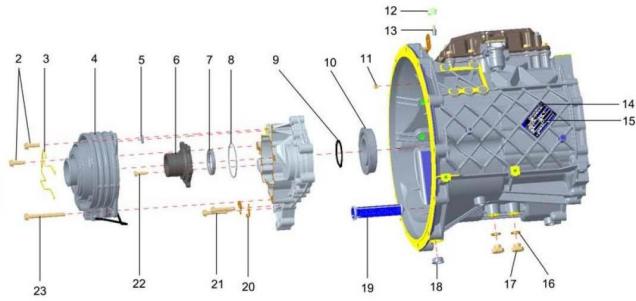

Item

Part No.

Part Name.

Qty.

Remark.

2

标准件

Hexagon head bolts and spring washers assemblies

2

3

150170000365AA0B

Auxiliary bracket

1

4

150170000366AA0B

CPCA (clutch actuator)

1

5

150170000367AA0B

O-Ring

1

6

150170000368AA0B

First axis bearing cover

1

7

150170000369AA0B

First axis bearing cover oil seal

1

8

150170000370AA0B

O-Ring

1

9

150170000371AA0B

Elastic Retaining Ring for Shaft

1

10

150170000372AA0B

Deep groove ball bearings

1

11

标准件

Hexagonal conical screw plugs

1

12

150170000373AA0B

topside cover

1

13

150170000374AA0B

Vent plug assembly

1

14

标准件

Cross recessed pan head tapping screws-Type C

4

15

150170000375AA0B

nameplate

1

16

标准件

sealing gasket

2

17

标准件

Hexagonal head screw plugs

2

18

150170000376AA0B

bottom cover

1

19

150170000377AA0B

oil filter

1

20

150170000378AA0B

Wire Harness Clip

2

21

标准件

Hexagon head bolts and flat washers assemblies

4+18

22

标准件

Hexagon head bolts and spring washers assemblies

6

23

标准件

Hexagon head bolts and flat washers assemblies

1

24

150170000379AA0B

nameplate small

1

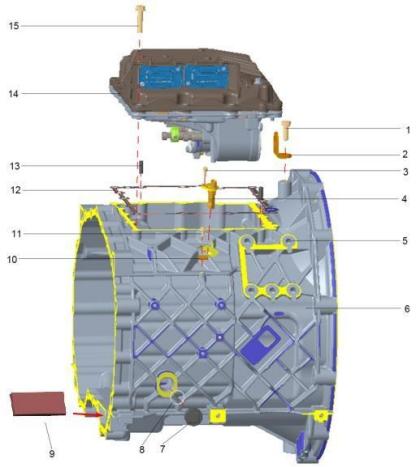

Item

Part No.

Part Name.

Qty.

Remark.

1

标准件

Hexagon head bolts and spring washers assemblies

1

2

150170000380AA0B

Lifting Benders

1

3

标准件

Hexagon head bolts and spring washers assemblies

1

4

150170000381AA0B

Output shaft speed sensor

1

5

150170000333AA0B

CA Bowl Plug

10

6

150170000382AA0B

Clutch Housing Assembly

1

7

150170000383AA0B

oil plug

1

8

150170000384AA0B

O-Rubber Seal

1

9

150170000385AA0B

bar magnet

1

10

150170000378AA0B

Wire Harness Clip

2

11

标准件

Hexagon head bolts + spring washers

2

12

150170000386AA0B

Maneuvering Window Liner

1

13

标准件

cylindrical pin

2

14

150170000387AA0B

SCU (Shift Control Unit)

1

15

标准件

Hexagon head bolts and flat washers assemblies

15

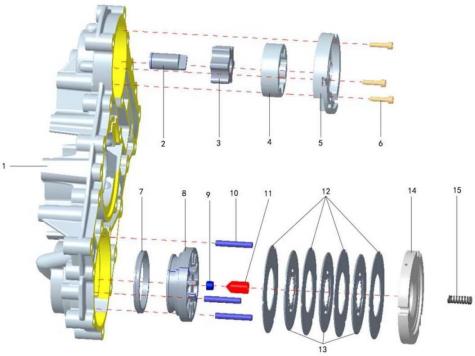

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000388AA0B

Front end cover

1

2

150170000389AA0B

Inner rotor pin

1

3

150170000390AA0B

Inner rotor

1

4

150170000391AA0B

Outer rotor

1

5

150170000392AA0B

Pump cover

1

6

标准件

Hex socket screw with cylindrical head

3

7

150170000393AA0B

Type K sealing ring

1

8

150170000394AA0B

piston

1

9

150170000395AA0B

Lifting pin

1

10

150170000396AA0B

dowel

3

11

150170000397AA0B

Top cap

1

12

150170000398AA0B

Brake disc

4

13

150170000399AA0B

Friction disc assembly

3

14

150170000400AA0B

gland

1

15

150170000401AA0B

Compression spring

1

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000402AA0B

one-axle

1

2

150170000403AA0B

Square head pin

1

3

150170000404AA0B

Tachometer wheel

1

4

150170000405AA0B

An axial septum

1

5

150170000406AA0B

One shaft differential gear

1

6

150170000407AA0B

Front sub box synchronizer assembly

1

7

150170000408AA0B

Retaining ring

2

8

150170000409AA0B

One shaft gear

1

9

150170000410AA0B

Thrust roller bearing assembly

1

10

150170000411AA0B

Spacer sleeve

1

11

150170000412AA0B

Limit spacer

2

12

150170000413AA0B

Lock piece

1

13

150170000414AA0B

Cylindrical roller bearing without outer ring

1

14

标准件

Elastic retainer for shaft

1

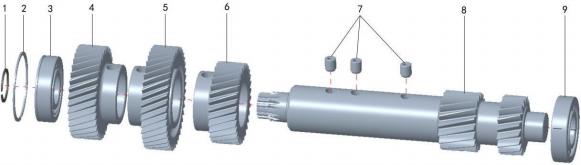

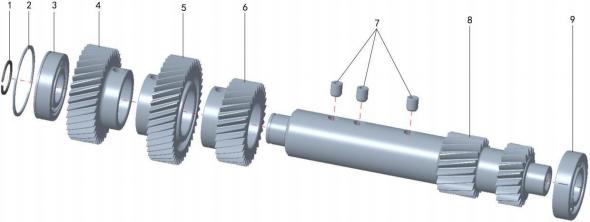

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000415AA0B

Retaining ring

1

2

150170000275AA0B

Retaining ring

1

3

150170000416AA0B

Cylindrical roller bearings

1

4

150170000417AA0B

Intermediate shaft differential gear

1

5

150170000418AA0B

Intermediate shaft drive gear

1

6

150170000419AA0B

Intermediate shaft second gear

1

7

150170000420AA0B

Round pin

3

8

150170000421AA0B

Left intermediate shaft

1

9

150170000422AA0B

Cylindrical roller bearings

1

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000415AA0B

Retaining ring

1

2

150170000275AA0B

Retaining ring

1

3

150170000416AA0B

Cylindrical roller bearings

1

4

150170000417AA0B

Intermediate shaft differential gear

1

5

150170000418AA0B

Intermediate shaft drive gear

1

6

150170000419AA0B

Intermediate shaft second gear

1

7

150170000420AA0B

Round pin

3

8

150170000423AA0B

Right intermediate shaft

1

9

150170000422AA0B

Cylindrical roller bearings

1

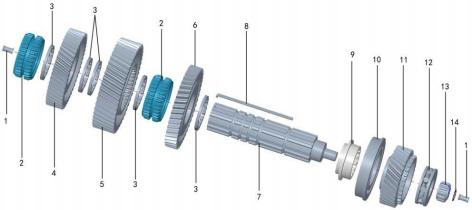

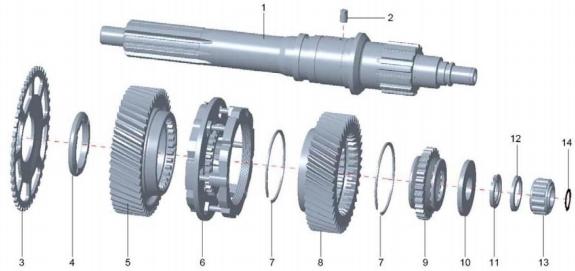

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000424AA0B

Oil pipe

2

2

150170000425AA0B

Sliding sleeve

2

3

150170000426AA0B

Two-axis gear spline pad

5

4

150170000427AA0B

Two shafts and two gears

1

5

150170000428AA0B

Two axes and one gear

1

6

150170000429AA0B

Two axis reverse gear

1

7

150170000430AA0B

biaxial

1

8

150170000431AA0B

Two axis hex key

1

9

150170000432AA0B

Bearing support

1

10

150170000433AA0B

Deep groove ball bearing

1

11

150170000434AA0B

Auxiliary case drive gear

1

12

150170000435AA0B

Thrust cylindrical roller bearing

1

13

150170000414AA0B

Cylindrical roller bearing without outer ring

1

14

标准件

Elastic retainer for shaft

1

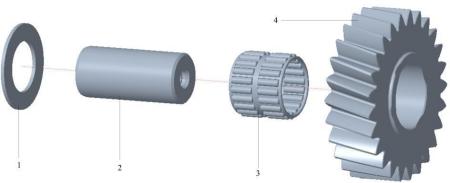

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000436AA0B

Reverse thrust gasket

2

2

150170000437AA0B

Reverse intermediate shaft

2

3

150170000438AA0B

Needle roller bearing

2

4

150170000439AA0B

Reverse the middle gear

2

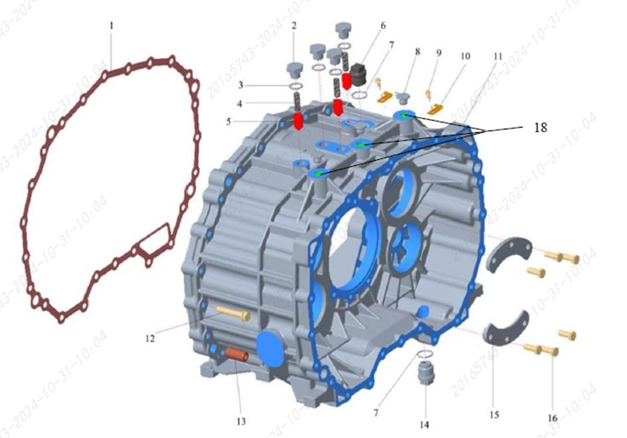

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000440AA0B

Clutch housing liner

1

2

150170000441AA0B

Plug screw

4

3

150170000442AA0B

Copper washer

4

4

150170000282AA0B

Compression spring

3

5

150170000397AA0B

Top cap

3

6

150170000383AA0B

Oil plug

1

7

150170000384AA0B

O-type rubber seal ring

2

8

150170000333AA0B

CA bowl plug

3

10

150170000378AA0B

Harness clip

2

11

150170000443AA0B

Gearbox housing assy

1

12

标准件

Hexagon head bolt and washer assembly

24

13

150170000444AA0B

Locating pin

4

14

150170000445AA0B

Oil plug and magnet assembly

1

15

150170000446AA0B

Secondary box bearing locating disc

2

16

150170000339AA0B

Hexagon head head bolt with hole

6

17

150170000447AA0B

Iron wire

/

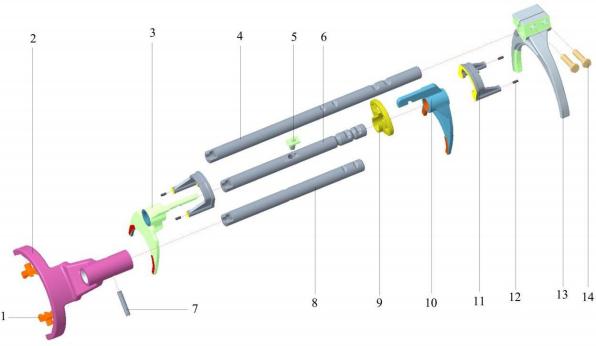

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000448AA0B

Front sub box fork block

2

2

150170000449AA0B

Fork for front sub case

1

3

150170000450AA0B

Second and third gear fork

1

4

150170000451AA0B

Range shift fork shaft

1

5

150170000452AA0B

Shift head

1

6

150170000453AA0B

Hang the shift fork shaft

1

7

150170000454AA0B

Round pin

2

8

150170000455AA0B

Front sub box fork shaft

1

9

150170000456AA0B

Interlocking block

1

10

150170000457AA0B

Reverse the fork

1

11

150170000458AA0B

Interlocking support

2

12

标准件

Round pin

4

13

150170000459AA0B

Sub case fork

1

14

标准件

Hexagonal head bolt with hole – fine teeth

2

15

150170000447AA0B

Iron wire

4

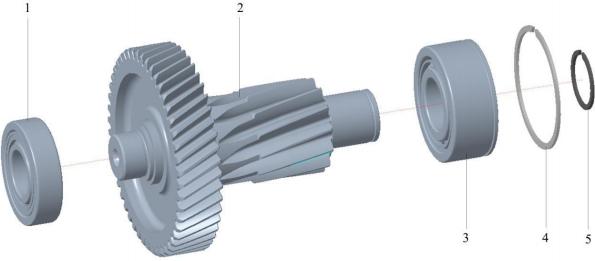

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000460AA0B

Cylindrical roller bearings

2

2

150170000461AA0B

Auxiliary box intermediate shaft welding assembly

2

3

150170000462AA0B

Cylindrical roller bearings

2

4

标准件

Shaft flat steel wire retaining ring

2

5

150170000415AA0B

Retaining ring

2

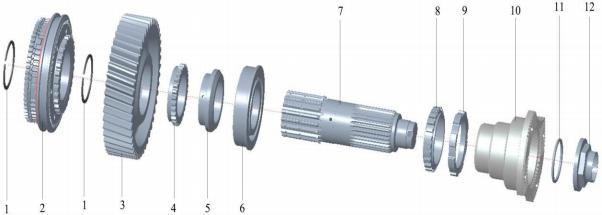

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000463AA0B

Retaining ring

2

2

150170000464AA0B

Synchronizer assembly, rear subbox

1

3

150170000465AA0B

Secondary case main shaft reduction gear

1

4

150170000466AA0B

Secondary case spindle washer

1

5

150170000467AA0B

Auxiliary case spindle gear clamping plate

1

6

150170000468AA0B

Four point contact ball bearing

1

7

150170000469AA0B

Auxiliary case lengthened spindle

1

10

150170000470AA0B

Output flange

1

11

150170000471AA0B

O-ring seal

1

12

150170000472AA0B

Flange nut

1

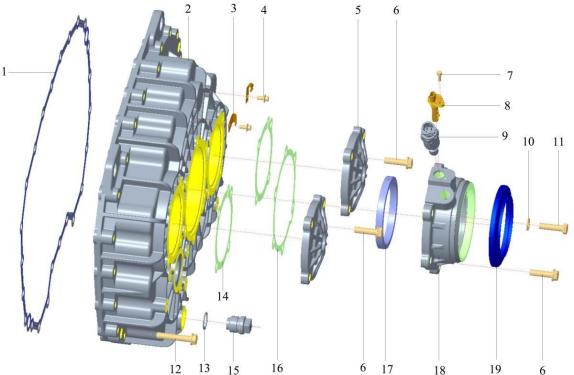

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000473AA0B

Rear cover liner

1

2

150170000474AA0B

Rear cover housing

1

3

150170000378AA0B

Harness clip

2

4

标准件

Hex head bolt + spring washer

1

6

标准件

Hexagon head bolt and washer assembly

13

7

标准件

Hexagon head bolt and spring washer assembly

1

8

150170000381AA0B

Output shaft speed sensor

1

9

150170000475AA0B

Electronic odometer sensor assembly

1

10

标准件

Plain washer

1

11

标准件

Hexagon head head bolt with hole

1

12

标准件

Hexagon head bolt and washer assembly

24

13

150170000384AA0B

O-shaped rubber seal ring

1

15

150170000445AA0B

Oil plug and magnet assembly

1

16

150170000476AA0B

Spindle rear bearing cover gasket

1

17

150170000477AA0B

Spindle rear bearing cover oil seal

1

18

150170000478AA0B

Spindle rear bearing cover

1

19

150170000479AA0B

Dust cover

1

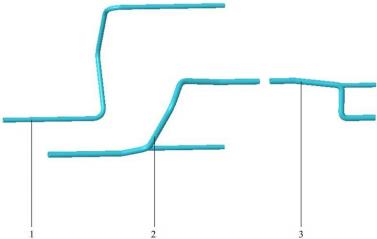

Item

Part No.

Part Name.

Qty.

Remark.

1

150170000480AA0B

Main box right lubricating oil pipe

1

2

150170000481AA0B

Main box left lubricating oil pipe assembly

1

3

150170000482AA0B

Auxiliary tank lubricating oil pipe assembly

1

4

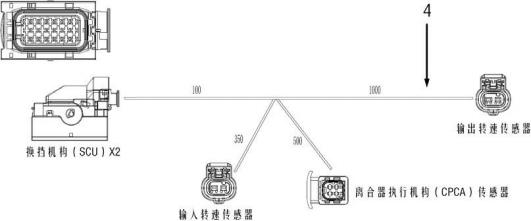

150170000483AA0B

Wiring harness assembly

1
