REGULATOR & GP-HOUSING
/ SDEC C6121ZG57a

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SC11CB220G2B1 (2013) SC9D220G2B1 (2015) SC9DF260Q5 SC9DF290Q4 (2015) SDEC 6CL280-2 (2015) SDEC 6CL320-2 SDEC C6121ZG57a (2010) SDEC серии 6114В (2010)

Схема > Не выбрано BLOCK AND COVER GP SEAL GP-CRANKSHAFT FILLER GP-OIL SUPPORT GP-REARSEAL CSHAFT PAN AND FASTENER GP GAGE GP-OIL LEVEL HEAD, COVER, FASTENER AND LIFTING GP PISTON & GP-ROD CRANKSHAFT GP PULLEY GP-CRANKSHAFT FLYWHEEL GP DAMPER GP GEAR GP-FRONT MUFFLER GP AND RAIN CAP GP CAMSHAFT GP MOTOR AND ALTERNATOR GP INTAKE MANIFOLD GP INTAKE AND EXHAUST MANIFOLD GP EXHAUST MANIFOLD AND FASTENER GP AIR CLEANER, GAGE AND DUST EJECTOR GP ENGINE OIL PUMP GP (TWO SECTION GEAR) FAN DRIVE GP FAN PULLEY, VEE BELT SET AND FAN ADAPTER GP FAN & GUARD GP COOLER & FILTER GP-OIL TRANSMISSION OIL COOLER GP LINES GP-ENGINE OIL LINES GP-TURBOCHARGER OIL PUMP GP-WATER REGULATOR & GP-HOUSING LINES GP-WATER FUEL INJECTION AND DRAIN LINES GP ENGINE SUPPORT, FLYWHEEL HOUSING SUPPORT AND BOLT MTG GP SHUT-OFF GP-ELECTRICAL FRONT HOUSING, COVER AND FASTENER GP TRUNNION GP VALVE MECHANISM, COVER, BREATHER AND FUMES DISPOSAL GP FILTER GP-SECONDARY TOOLS GP TURBOCHARGER GP PUMP & CONTROL GP-GOV APPLICATION GP

1

2

3

4

5

6

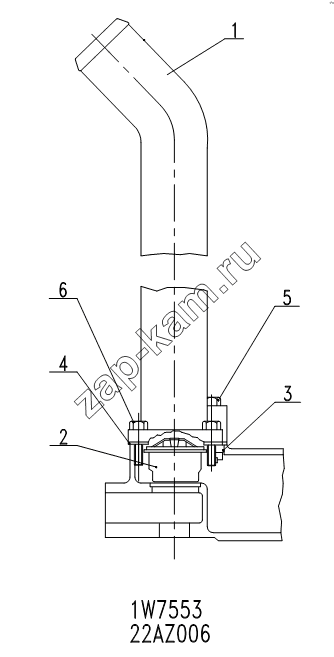

Поз.	Артикул		Название детали	Кол-во
1	1W7529		ELBOW-REGULATOR HOUSING	1;
2	1118010		REGUATER GP-HOUSING	1;
3	8N4485		VALVE AS.-VENT LINE	1;
4	7N0944		GASKET	1;
5	0S1590		BOLT	1;
6	9B7237		BOLT	3;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
