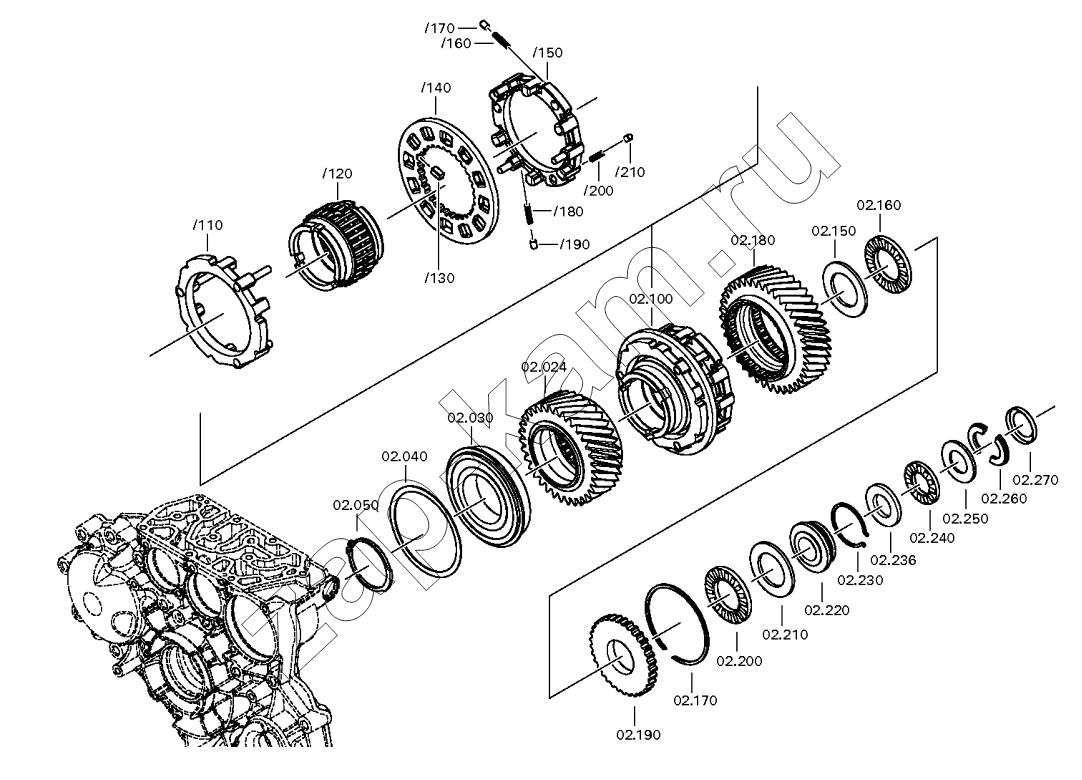

INPUT SHAFT
/ DongFeng DFH4180-HA40-000-A0
02.24
02.30
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.40
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.50
02.100
02.100.110
02.100.120
02.100.130
02.100.140
02.100.150
02.100.160
02.100.170
02.100.180
02.100.190
02.100.200
02.100.210
02.150
02.160
02.170
02.170
02.170
02.170
02.170
02.170
02.170
02.170
02.180
02.190
02.200
02.210
02.220
02.230
02.236
02.240
02.250
02.260
02.270
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 02.10 | 1358.302.061 | Connection plate | 1; | 21 960 ₽ | |
| 02.20 | SHAFT SEAL | Shaft seal | 1; | - | |
| 02.20 | 0734.319.847 | Shaft seal | 1; | ||
| 02.24 | 1358.302.224 | Helical gear | 1; | от 10 370 ₽ | |
| 02.30 | 0750.116.365 | Ball bearing | 1; | 3 420 ₽ | |
| 02.40 | WASHER | Washer | 1; | - | |
| 02.40 | 0730.008.520 | Shim | 1; | ||
| 02.40 | 0730.008.521 | Shim | 1; | ||
| 02.40 | 0730.008.522 | Shim | 1; | ||
| 02.40 | 0730.008.523 | Shim | 1; | ||
| 02.40 | 0730.008.524 | Shim | 1; | ||
| 02.40 | 0730.008.525 | Shim | 1; | ||
| 02.40 | 0730.008.526 | Shim | 1; | ||
| 02.40 | 0730.008.527 | Shim | 1; | ||
| 02.40 | 0730.008.528 | Shim | 1; | ||
| 02.40 | 0730.008.529 | Shim | 1; | ||
| 02.40 | 0730.008.530 | Shim | 1; | ||
| 02.40 | 0730.008.531 | Shim | 1; | ||
| 02.40 | 0730.008.532 | Shim | 1; | ||
| 02.50 | RETAINING RING | Retaining ring | 1; | - | |
| 02.50 | 0730.501.360 | Retaining ring | 1; | 2 260 ₽ | |
| 02.50 | 0730.501.589 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.590 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.591 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.592 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.593 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.594 | Retaining ring | 1; | 280 ₽ | |
| 02.50 | 0730.501.595 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.596 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.597 | Retaining ring | 1; | 280 ₽ | |
| 02.50 | 0730.501.354 | Retaining ring | 1; | 680 ₽ | |
| 02.50 | 0730.501.355 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.356 | Retaining ring | 1; | 2 880 ₽ | |
| 02.50 | 0730.501.357 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.358 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.359 | Retaining ring | 1; | по запросу | |
| 02.100 | 1358.202.023 | Synchronizer gv | 1; | от 47 120 ₽ | |
| 02.100.110 | 1358.202.020 | Synchro.ring | 1; | 23 560 ₽ | |
| 02.100.120 | 1358.302.283 | Gear shift sleeve | 1; | 23 180 ₽ | |
| 02.100.130 | 1358.302.261 | Pin | 1; | 4 340 ₽ | |
| 02.100.140 | 1358.302.262 | Plate | 1; | 23 180 ₽ | |
| 02.100.150 | 1358.202.021 | Synchro.ring | 1; | 26 840 ₽ | |
| 02.100.160 | 0732.040.385 | Compression spring | 1; | 30 ₽ - 50 ₽ | |
| 02.100.170 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.100.180 | 0732.040.385 | Compression spring | 1; | 30 ₽ - 50 ₽ | |
| 02.100.190 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.100.200 | 0732.040.385 | Compression spring | 1; | 30 ₽ - 50 ₽ | |
| 02.100.210 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.150 | 0730.111.066 | Washer | 1; | 1 310 ₽ | |
| 02.160 | 0735.301.274 | Axial roller ring | 1; | 1 960 ₽ | |
| 02.170 | SNAP RING | Snap ring | 1; | - | |
| 02.170 | 0730.300.591 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.592 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.593 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.594 | Snap ring | 1; | 650 ₽ | |
| 02.170 | 0730.300.595 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.596 | Snap ring | 1; | 650 ₽ | |
| 02.170 | 0730.300.597 | Snap ring | 1; | 400 ₽ | |
| 02.180 | 1358.302.203 | Helical gear | 1; | 13 120 ₽ | |
| 02.190 | 1359.302.006 | Bearing disk | 1; | 6 570 ₽ | |
| 02.200 | 0735.301.274 | Axial roller ring | 1; | 1 960 ₽ | |
| 02.210 | 0730.111.066 | Washer | 1; | 1 310 ₽ | |
| 02.220 | 1358.302.250 | Bearing ring | 1; | 1 660 ₽ | |
| 02.230 | 0730.302.681 | Fastening ring | 1; | 730 ₽ | |
| 02.236 | 0501.330.031 | Shaft washer | 1; | 1 840 ₽ | |
| 02.240 | 0735.301.599 | Axial roller ring | 1; | 1 520 ₽ | |
| 02.250 | 0730.301.844 | Washer | 1; | 1 670 ₽ | |
| 02.260 | 1328.202.038 | Split ring | 1; | от 9 300 ₽ | |
| 02.270 | 0730.063.258 | Retaining ring | 1; | 250 ₽ | |
| 02.311 | 1370.302.412 | Input shaft | 1; | 27 940 ₽ - 179 800 ₽ | |
| 02.800 | 0501.329.479 | Gasket | 1; | 3 780 ₽ | |
| 02.810 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.820 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.830 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.840 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.850 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.860 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.870 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.880 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.890 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.900 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.910 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.920 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.930 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.940 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.950 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.960 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.970 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.980 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.990 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1000 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1010 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1020 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1030 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1040 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1200 | 0501.328.759 | O-ring | 1; | 380 ₽ | |
| 02.1210 | 0501.328.759 | O-ring | 1; | 380 ₽ | |
| 02.1400 | 1358.302.217 | Cover | 1; | от 650 ₽ | |
| 02.1402 | 0501.328.757 | O-ring | 1; | 290 ₽ | |
| 02.1410 | 0736.300.208 | Torx screw | 1; | 360 ₽ | |
| 02.1420 | 0736.300.208 | Torx screw | 1; | 360 ₽ |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
