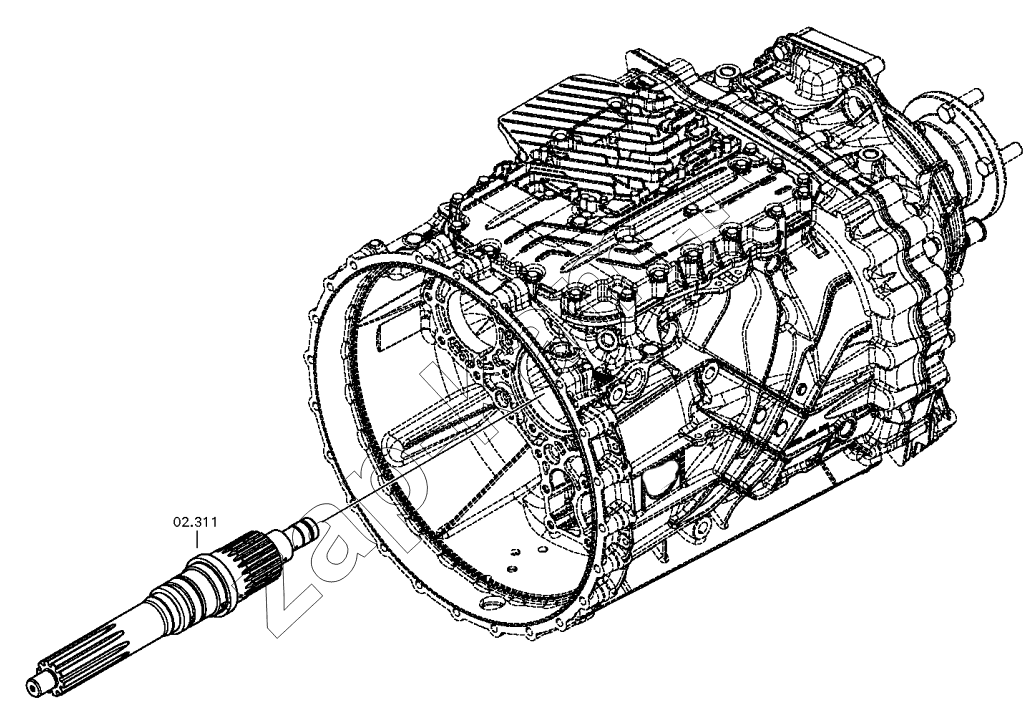

INPUT SHAFT
/ DongFeng DFH4180-HA40-000-A0
02.311
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 02.10 | 1358.302.061 | Connection plate | 1; | 21 960 ₽ | |
| 02.20 | SHAFT SEAL | Shaft seal | 1; | - | |
| 02.20 | 0734.319.847 | Shaft seal | 1; | ||
| 02.24 | 1358.302.224 | Helical gear | 1; | от 10 370 ₽ | |
| 02.30 | 0750.116.365 | Ball bearing | 1; | 3 460 ₽ | |
| 02.40 | WASHER | Washer | 1; | - | |
| 02.40 | 0730.008.520 | Shim | 1; | ||
| 02.40 | 0730.008.521 | Shim | 1; | ||
| 02.40 | 0730.008.522 | Shim | 1; | ||
| 02.40 | 0730.008.523 | Shim | 1; | ||
| 02.40 | 0730.008.524 | Shim | 1; | ||
| 02.40 | 0730.008.525 | Shim | 1; | ||
| 02.40 | 0730.008.526 | Shim | 1; | ||
| 02.40 | 0730.008.527 | Shim | 1; | ||
| 02.40 | 0730.008.528 | Shim | 1; | ||
| 02.40 | 0730.008.529 | Shim | 1; | ||
| 02.40 | 0730.008.530 | Shim | 1; | ||
| 02.40 | 0730.008.531 | Shim | 1; | ||
| 02.40 | 0730.008.532 | Shim | 1; | ||
| 02.50 | RETAINING RING | Retaining ring | 1; | - | |
| 02.50 | 0730.501.360 | Retaining ring | 1; | 2 260 ₽ | |
| 02.50 | 0730.501.589 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.590 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.591 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.592 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.593 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.594 | Retaining ring | 1; | 280 ₽ | |
| 02.50 | 0730.501.595 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.596 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.597 | Retaining ring | 1; | 280 ₽ | |
| 02.50 | 0730.501.354 | Retaining ring | 1; | 680 ₽ | |
| 02.50 | 0730.501.355 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.356 | Retaining ring | 1; | 2 880 ₽ | |
| 02.50 | 0730.501.357 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.358 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.359 | Retaining ring | 1; | по запросу | |
| 02.100 | 1358.202.023 | Synchronizer gv | 1; | 65 880 ₽ | |
| 02.100.110 | 1358.202.020 | Synchro.ring | 1; | 23 560 ₽ | |
| 02.100.120 | 1358.302.283 | Gear shift sleeve | 1; | 23 180 ₽ | |
| 02.100.130 | 1358.302.261 | Pin | 1; | 4 340 ₽ | |
| 02.100.140 | 1358.302.262 | Plate | 1; | 23 180 ₽ | |
| 02.100.150 | 1358.202.021 | Synchro.ring | 1; | 26 840 ₽ | |
| 02.100.160 | 0732.040.385 | Compression spring | 1; | 50 ₽ - 370 ₽ | |
| 02.100.170 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.100.180 | 0732.040.385 | Compression spring | 1; | 50 ₽ - 370 ₽ | |
| 02.100.190 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.100.200 | 0732.040.385 | Compression spring | 1; | 50 ₽ - 370 ₽ | |
| 02.100.210 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.150 | 0730.111.066 | Washer | 1; | 1 310 ₽ | |
| 02.160 | 0735.301.274 | Axial roller ring | 1; | 1 920 ₽ | |
| 02.170 | SNAP RING | Snap ring | 1; | - | |
| 02.170 | 0730.300.591 | Snap ring | 1; | ||
| 02.170 | 0730.300.592 | Snap ring | 1; | ||
| 02.170 | 0730.300.593 | Snap ring | 1; | ||
| 02.170 | 0730.300.594 | Snap ring | 1; | 650 ₽ | |
| 02.170 | 0730.300.595 | Snap ring | 1; | ||
| 02.170 | 0730.300.596 | Snap ring | 1; | ||
| 02.170 | 0730.300.597 | Snap ring | 1; | 400 ₽ | |
| 02.180 | 1358.302.203 | Helical gear | 1; | 13 120 ₽ | |
| 02.190 | 1359.302.006 | Bearing disk | 1; | 6 570 ₽ | |
| 02.200 | 0735.301.274 | Axial roller ring | 1; | 1 920 ₽ | |
| 02.210 | 0730.111.066 | Washer | 1; | 1 310 ₽ | |
| 02.220 | 1358.302.250 | Bearing ring | 1; | от 1 660 ₽ | |
| 02.230 | 0730.302.681 | Fastening ring | 1; | от 730 ₽ | |
| 02.236 | 0501.330.031 | Shaft washer | 1; | 1 840 ₽ | |
| 02.240 | 0735.301.599 | Axial roller ring | 1; | от 1 520 ₽ | |
| 02.250 | 0730.301.844 | Washer | 1; | 1 670 ₽ | |
| 02.260 | 1328.202.038 | Split ring | 1; | от 9 300 ₽ | |
| 02.270 | 0730.063.258 | Retaining ring | 1; | 250 ₽ | |
| 02.311 | 1370.302.412 | Input shaft | 1; | от 27 940 ₽ - 195 200 ₽ | |
| 02.800 | 0501.329.479 | Gasket | 1; | 3 820 ₽ | |
| 02.810 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.820 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.830 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.840 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.850 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.860 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.870 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.880 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.890 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.900 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.910 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.920 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.930 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.940 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.950 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.960 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.970 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.980 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.990 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.1000 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.1010 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.1020 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.1030 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.1040 | 0636.102.270 | Hexagon screw | 1; | 80 ₽ | |
| 02.1200 | 0501.328.759 | O-ring | 1; | 380 ₽ | |
| 02.1210 | 0501.328.759 | O-ring | 1; | 380 ₽ | |
| 02.1400 | 1358.302.217 | Cover | 1; | от 650 ₽ | |
| 02.1402 | 0501.328.757 | O-ring | 1; | 290 ₽ | |
| 02.1410 | 0736.300.208 | Torx screw | 1; | 360 ₽ | |
| 02.1420 | 0736.300.208 | Torx screw | 1; | 360 ₽ |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
