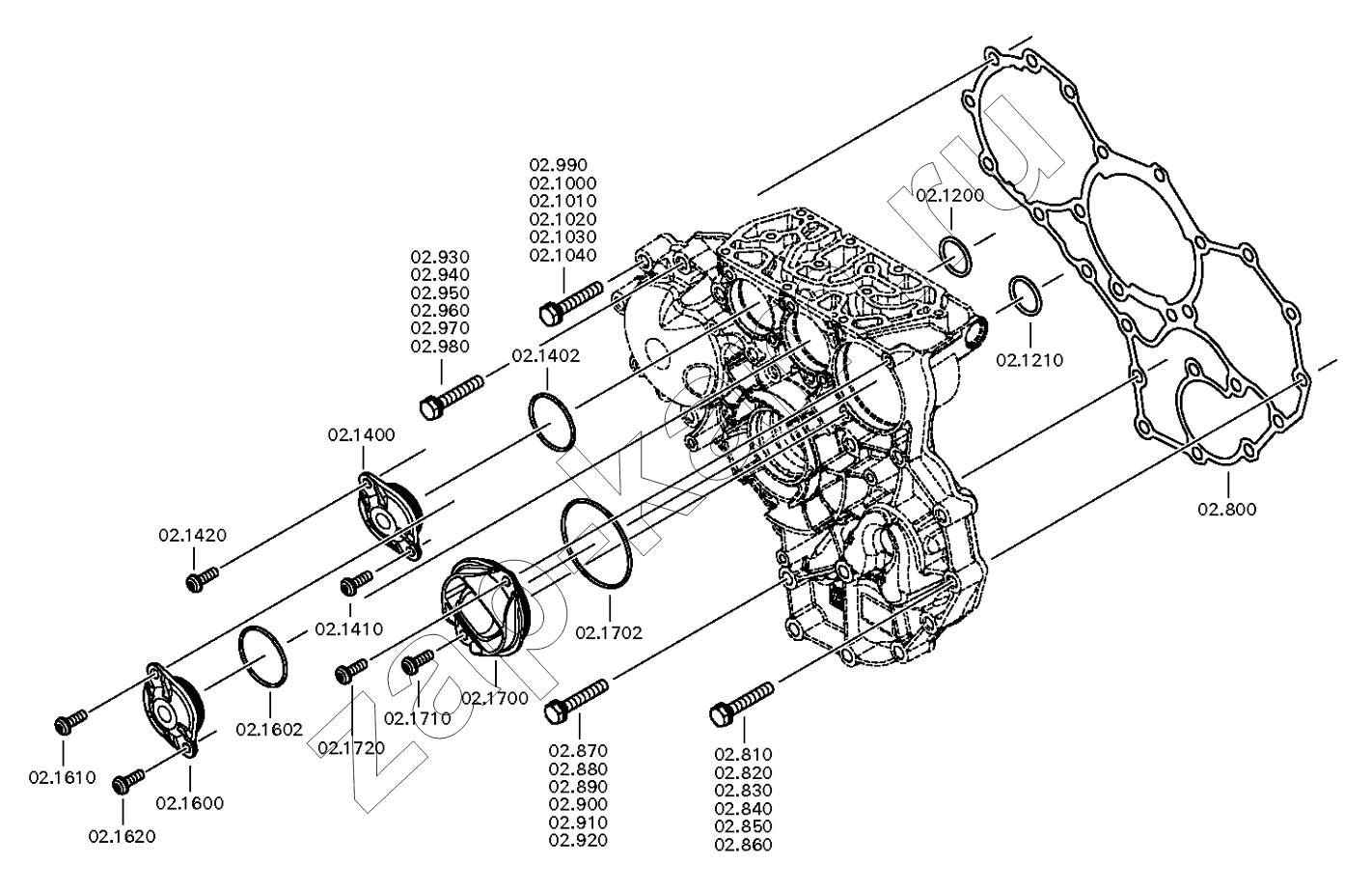

INPUT SHAFT
/ DongFeng DFH4180-HA40-000-A0
02.800
02.810
02.820
02.830
02.840
02.850
02.860
02.870
02.880
02.890
02.900
02.910
02.920
02.930
02.940
02.950
02.960
02.970
02.980
02.990
02.1000
02.1010
02.1020
02.1030
02.1040
02.1200
02.1210
02.1400
02.1402
02.1410
02.1420
02.1600
02.1602
02.1610
02.1620
02.1700
02.1702
02.1710
02.1720
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 02.10 | 1358.302.061 | Connection plate | 1; | 21 960 ₽ | |
| 02.20 | SHAFT SEAL | Shaft seal | 1; | - | |
| 02.20 | 0734.319.847 | Shaft seal | 1; | ||
| 02.24 | 1358.302.224 | Helical gear | 1; | от 10 370 ₽ | |
| 02.30 | 0750.116.365 | Ball bearing | 1; | 3 420 ₽ | |
| 02.40 | WASHER | Washer | 1; | - | |
| 02.40 | 0730.008.520 | Shim | 1; | ||
| 02.40 | 0730.008.521 | Shim | 1; | ||
| 02.40 | 0730.008.522 | Shim | 1; | ||
| 02.40 | 0730.008.523 | Shim | 1; | ||
| 02.40 | 0730.008.524 | Shim | 1; | ||
| 02.40 | 0730.008.525 | Shim | 1; | ||
| 02.40 | 0730.008.526 | Shim | 1; | ||
| 02.40 | 0730.008.527 | Shim | 1; | ||
| 02.40 | 0730.008.528 | Shim | 1; | ||
| 02.40 | 0730.008.529 | Shim | 1; | ||
| 02.40 | 0730.008.530 | Shim | 1; | ||
| 02.40 | 0730.008.531 | Shim | 1; | ||
| 02.40 | 0730.008.532 | Shim | 1; | ||
| 02.50 | RETAINING RING | Retaining ring | 1; | - | |
| 02.50 | 0730.501.360 | Retaining ring | 1; | 2 260 ₽ | |
| 02.50 | 0730.501.589 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.590 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.591 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.592 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.593 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.594 | Retaining ring | 1; | 280 ₽ | |
| 02.50 | 0730.501.595 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.596 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.597 | Retaining ring | 1; | 280 ₽ | |
| 02.50 | 0730.501.354 | Retaining ring | 1; | 680 ₽ | |
| 02.50 | 0730.501.355 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.356 | Retaining ring | 1; | 2 880 ₽ | |
| 02.50 | 0730.501.357 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.358 | Retaining ring | 1; | по запросу | |
| 02.50 | 0730.501.359 | Retaining ring | 1; | по запросу | |
| 02.100 | 1358.202.023 | Synchronizer gv | 1; | от 47 120 ₽ | |
| 02.100.110 | 1358.202.020 | Synchro.ring | 1; | 23 560 ₽ | |
| 02.100.120 | 1358.302.283 | Gear shift sleeve | 1; | 23 180 ₽ | |
| 02.100.130 | 1358.302.261 | Pin | 1; | 4 340 ₽ | |
| 02.100.140 | 1358.302.262 | Plate | 1; | 23 180 ₽ | |
| 02.100.150 | 1358.202.021 | Synchro.ring | 1; | 26 840 ₽ | |
| 02.100.160 | 0732.040.385 | Compression spring | 1; | 30 ₽ - 50 ₽ | |
| 02.100.170 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.100.180 | 0732.040.385 | Compression spring | 1; | 30 ₽ - 50 ₽ | |
| 02.100.190 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.100.200 | 0732.040.385 | Compression spring | 1; | 30 ₽ - 50 ₽ | |
| 02.100.210 | 0635.470.046 | Cylinder roller | 1; | 80 ₽ | |
| 02.150 | 0730.111.066 | Washer | 1; | 1 310 ₽ | |
| 02.160 | 0735.301.274 | Axial roller ring | 1; | 1 960 ₽ | |
| 02.170 | SNAP RING | Snap ring | 1; | - | |
| 02.170 | 0730.300.591 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.592 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.593 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.594 | Snap ring | 1; | 650 ₽ | |
| 02.170 | 0730.300.595 | Snap ring | 1; | по запросу | |
| 02.170 | 0730.300.596 | Snap ring | 1; | 650 ₽ | |
| 02.170 | 0730.300.597 | Snap ring | 1; | 400 ₽ | |
| 02.180 | 1358.302.203 | Helical gear | 1; | 13 120 ₽ | |
| 02.190 | 1359.302.006 | Bearing disk | 1; | 6 570 ₽ | |
| 02.200 | 0735.301.274 | Axial roller ring | 1; | 1 960 ₽ | |
| 02.210 | 0730.111.066 | Washer | 1; | 1 310 ₽ | |
| 02.220 | 1358.302.250 | Bearing ring | 1; | 1 660 ₽ | |
| 02.230 | 0730.302.681 | Fastening ring | 1; | 730 ₽ | |
| 02.236 | 0501.330.031 | Shaft washer | 1; | 1 840 ₽ | |
| 02.240 | 0735.301.599 | Axial roller ring | 1; | 1 520 ₽ | |
| 02.250 | 0730.301.844 | Washer | 1; | 1 670 ₽ | |
| 02.260 | 1328.202.038 | Split ring | 1; | от 9 300 ₽ | |
| 02.270 | 0730.063.258 | Retaining ring | 1; | 250 ₽ | |
| 02.311 | 1370.302.412 | Input shaft | 1; | 27 940 ₽ - 179 800 ₽ | |
| 02.800 | 0501.329.479 | Gasket | 1; | 3 780 ₽ | |
| 02.810 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.820 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.830 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.840 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.850 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.860 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.870 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.880 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.890 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.900 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.910 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.920 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.930 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.940 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.950 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.960 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.970 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.980 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.990 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1000 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1010 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1020 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1030 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1040 | 0636.102.270 | Hexagon screw | 1; | 100 ₽ | |
| 02.1200 | 0501.328.759 | O-ring | 1; | 380 ₽ | |
| 02.1210 | 0501.328.759 | O-ring | 1; | 380 ₽ | |
| 02.1400 | 1358.302.217 | Cover | 1; | от 650 ₽ | |
| 02.1402 | 0501.328.757 | O-ring | 1; | 290 ₽ | |
| 02.1410 | 0736.300.208 | Torx screw | 1; | 360 ₽ | |
| 02.1420 | 0736.300.208 | Torx screw | 1; | 360 ₽ | |
| 02.1600 | 1358.302.218 | Cover | 1; | от 570 ₽ | |
| 02.1602 | 0501.328.757 | O-ring | 1; | 290 ₽ | |
| 02.1610 | 0736.300.208 | Torx screw | 1; | 360 ₽ | |
| 02.1620 | 0736.300.208 | Torx screw | 1; | 360 ₽ | |
| 02.1700 | 1358.302.219 | Cover | 1; | от 1 100 ₽ | |
| 02.1702 | 0501.328.758 | O-ring | 1; | 560 ₽ | |
| 02.1710 | 0736.300.208 | Torx screw | 1; | 360 ₽ | |
| 02.1720 | 0736.300.208 | Torx screw | 1; | 360 ₽ |
