PLANETARY DRIVE
/ DongFeng DFH4180-HA40-000-A0

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

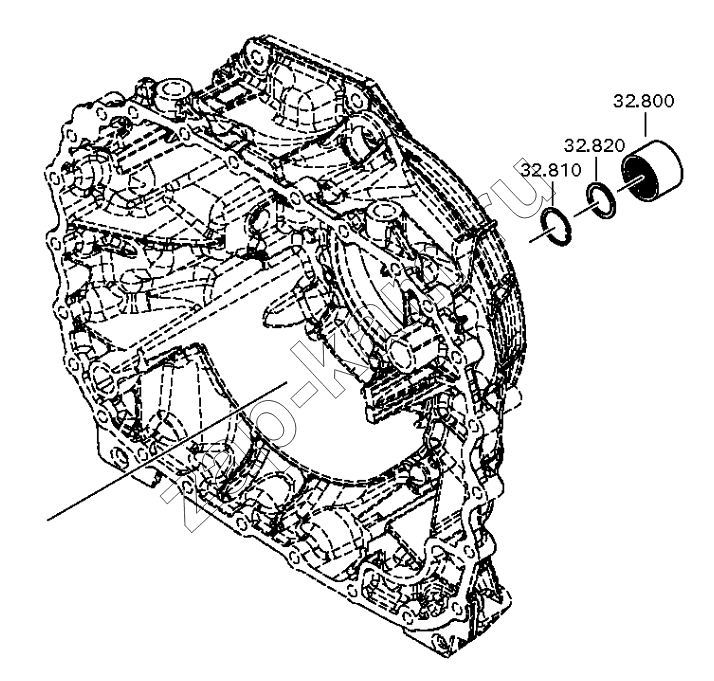

Схема/чертеж: PLANETARY DRIVE / DongFeng DFH4180-HA40-000-A0
32.800
32.810
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
32.820
Поз. Артикул Название детали Кол-во Цена
32.10 0769.174.171 Planet carrier 1; 58 560 ₽ - 127 720 ₽
32.20 1358.332.247 Sun gear 1; от 11 590 ₽
32.30 1358.332.223 Pressure disk 1; от 3 900 ₽
32.32 1358.332.015 Driving pin 1; 410 ₽
32.40 1358.332.223 Pressure disk 1; от 3 900 ₽
32.42 1358.332.015 Driving pin 1; 410 ₽
32.50 1358.232.016 Planet gear set 1; от 36 480 ₽
32.60 1358.232.017 Planet shaft 1; 2 440 ₽
32.70 1358.232.005 Roller 1; 370 ₽
32.80 1358.232.006 Intermediate washer 1; 150 ₽
32.100 1358.232.018 Intermediate washer 1; 100 ₽
32.200 1358.332.245 Ring gear 1; от 26 840 ₽
32.210 1358.232.015 Ring gear carrier set 1; от 13 420 ₽
32.210.10 1358.332.252 Ring gear carrier 1; 14 640 ₽
32.210.20 1358.332.222 Thrust ring 1; от 9 300 ₽
32.212 0730.302.523 Locking wire 1; 510 ₽
32.222 0730.302.523 Locking wire 1; 510 ₽
32.230 1328.333.010 Clutch body 1; от 9 300 ₽
32.240 0730.513.745 Retaining ring 1; 430 ₽
32.250 1328.333.009 Clutch body 1; от 6 100 ₽
32.260 0750.116.394 Ball bearing 1; 4 680 ₽
32.270 0750.118.284 Needle bearing 1; 5 740 ₽
32.280 0630.513.139 Snap ring 1; от 170 ₽
32.800 1358.304.247 Sleeve 1; от 8 160 ₽
32.810 0730.303.670 Retaining ring 1; 150 ₽
32.820 SHIM Shim 1; -
32.820 0730.003.884 Shim 1;
32.820 0730.003.886 Shim 1;
32.820 0730.003.888 Shim 1;
32.820 0730.003.890 Shim 1;
32.820 0730.003.892 Shim 1;
32.820 0730.003.894 Shim 1;
32.820 0730.003.896 Shim 1;
32.820 0730.003.898 Shim 1;
32.820 0730.003.900 Shim 1;
32.820 0730.003.902 Shim 1;
32.820 0730.003.904 Shim 1;
32.820 0730.003.906 Shim 1;
32.820 0730.003.908 Shim 1;
32.820 0730.003.910 Shim 1;
32.820 0730.003.912 Shim 1;
32.820 0730.003.914 Shim 1;
32.820 0730.004.629 Shim 1;
32.820 0730.004.631 Shim 1;
32.820 0730.004.633 Shim 1;
32.820 0730.004.635 Shim 1;
32.820 0730.004.637 Shim 1;
32.820 0730.004.639 Shim 1;
32.820 0730.004.641 Shim 1;
32.820 0730.004.643 Shim 1;
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
