Стопорная пластина – Shaanxi Hande Asle Co., Ltd
81.90801.0221
по запросу
|
/47.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
15
16
17
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
31
31
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61

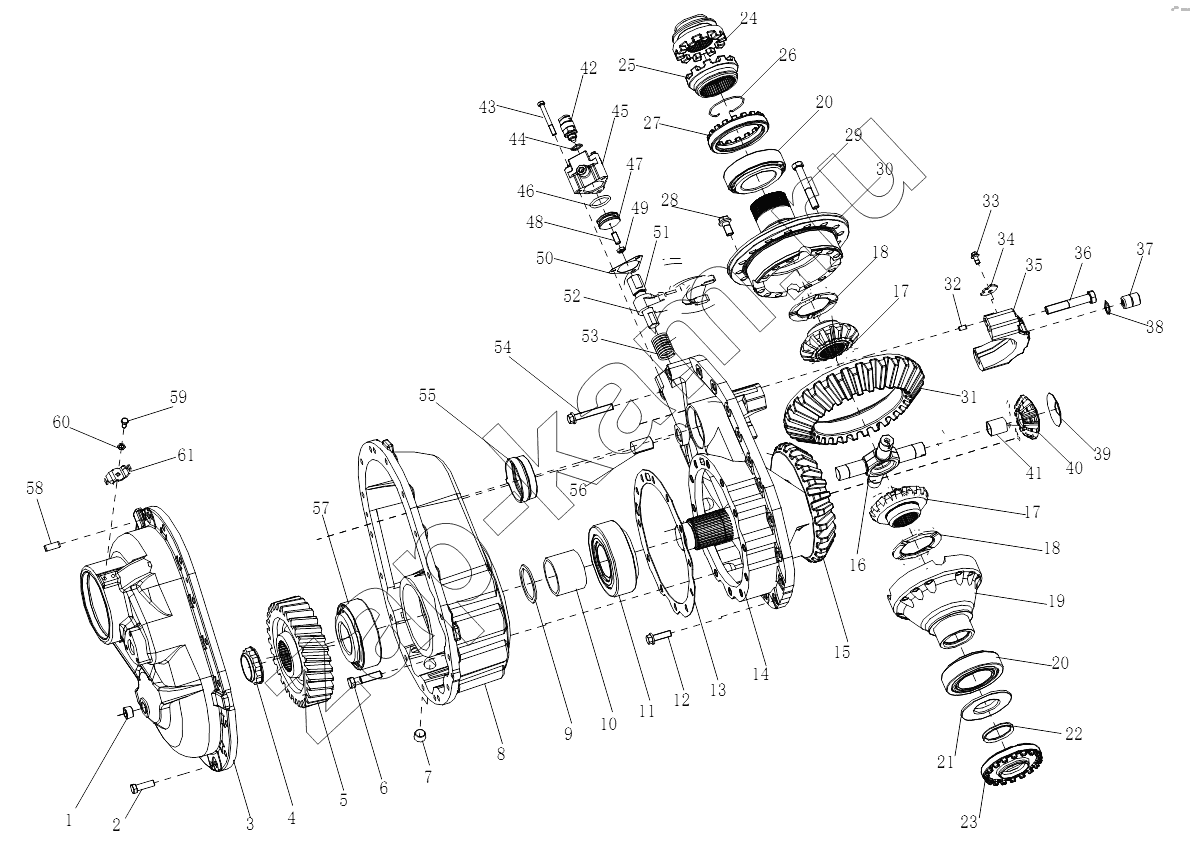

| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 81.90310.0179 | Plug | 2; | 160 ₽ | |
| 2 | Q151C1240 | Hexagon head bolts - fine teeth | 16; | - | |
| 3 | 81.35602.0009 | Pass-axle box cap | 1; | - | |
| 4 | 81.90685.0303 | Lock nut | 2; | - | |
| 5 | 81.35610.0011 | Passive column gear | 1; | - | |
| 6 | Q151B1460TF2 | Болт | 12; | - | |
| 7 | 81.90301.0025 | Plug | 2; | 410 ₽ | |
| 8 | 81.35601.0009 | Pass axle box | 1; | - | |
| 9 | 81.90770.0100 | Adjusting washer | 1; | по запросу - 410 ₽ | |
| 10 | 81.91701.0349 | Space bush | 1; | - | |
| 11 | 06.32499.0082 | Row-steeproller bearing | 1; | - | |
| 12 | Q1811440TF2 | Hex bolt | 18; | - | |
| 13 | 81.90701.0710 | Adjusting washer | 1; | - | |
| 14 | DZ9114320971 | Final drive case | 1; | - | |
| 15 | 81.35101.0520 | Active taper gear | 1; | - | |
| 15 | 81.35101.0554 | Active taper gear | 1; | - | |
| 15 | 81.35101.0565 | Active taper gear | 1; | - | |
| 15 | 81.35101.0532 | Active taper gear | 1; | - | |
| 15 | 81.35101.0523 | Active taper gear | 1; | - | |
| 16 | 81.35107.0014 | Cross axle | 1; | - | |
| 17 | 81.35106.0036 | Axle shaft gear | 2; | - | |
| 18 | 81.35613.0043 | Axle shaft gear washer | 2; | - | |
| 19 | 81.35110.0028 | Differential case | 1; | - | |
| 20 | 06.32499.0040 | Row-steep roller bearing | 2; | - | |
| 21 | 81.35125.0002 | Oil baffle disc | 1; | - | |
| 22 | 06.56669.0115 | V-ring | 1; | - | |
| 23 | 81.35125.0012 | Adjusting nut | 1; | - | |
| 24 | 81.35202.0033 | Shift sleeve | 1; | - | |
| 25 | 81.35202.0034 | Fixed sleeve | 1; | - | |
| 26 | 81.90820.0091 | Wire circlip for axle | 1; | - | |
| 27 | 81.35125.0003 | Adjusting nut | 1; | - | |
| 28 | 81.90490.0331 | Hex bolt | 1; | - | |
| 29 | Q151B1490TF2 | Hex bolt | 6; | - | |
| 30 | 81.35105.0023 | Differential case | 1; | - | |
| 31 | 81.35120.0520 | Passive bevel gear | 2; | - | |
| 31 | 81.35120.0554 | Passive bevel gear | 1; | - | |
| 31 | 81.35120.0565 | Passive bevel gear | 1; | - | |
| 31 | 81.35120.0532 | Passive bevel gear | 1; | - | |
| 31 | 81.35120.0523 | Passive bevel gear | 1; | - | |
| 32 | Q5220816 | Pin | 1; | - | |
| 33 | Q1800816 | Hex bolt | 1; | - | |
| 34 | DZ9112320026 | Lock piece | 4; | - | |
| 35 | 81.35302.0051 | Lock piece | 2; | - | |
| 36 | 06.02202.0717 | Hex bolt | 2; | - | |
| 37 | 81.91001.0421 | Bush | 2; | - | |
| 38 | 06.29019.0013 | Washer | 4; | - | |
| 39 | 81.90711.0535 | Plant gear washer | 2; | - | |
| 40 | 81.35108.0059 | Plant gear | 2; | - | |
| 41 | 81.93020.0458 | Bush | 4; | - | |
| 42 | 81.25503.0244 | Gearbox switch | 4; | - | |
| 43 | Q150B0870 | Hex bolt | 4; | - | |
| 44 | 190003098020 | Packing washer | 2; | - | |
| 45 | 81.35631.0006 | Shift cylinder | 2; | - | |
| 46 | 06.56331.3274 | O-ring | 2; | - | |
| 47 | 81.35634.0011 | Plunger | 2; | - | |
| 48 | Q2821025 | Threaded pin | 2; | - | |
| 49 | Q350B10 | Hex nut | 2; | - | |
| 50 | 81.96601.0627 | Gasket | 2; | - | |
| 51 | 81.35619.0003 | Selector shaft | 2; | - | |
| 52 | 81.35614.0006 | Selector fork | 1; | - | |
| 53 | 81.97601.0689 | Spring | 2; | - | |
| 54 | DZ9003800004 | Bolt | 2; | - | |
| 55 | 81.35412.0013 | Locating cowl | 1; | - | |
| 56 | 81.91001.0289 | Pin | 1; | - | |
| 57 | 06.32499.0095 | Row-steep roller | 1; | - | |
| 58 | Q5211232 | Bearing | 2; | - | |
| 59 | Q150B0816 | Болт | 4; | - | |
| 60 | Q41408 | Hex bolt | 4; | - | |
| 61 | 81.90801.0221 | Anti-loose lock | 2; | по запросу | |
| 62 | 81.39115.0175 | Lock piece | 1; | - | |
| 63 | 81.39135.0004 | Flange assembly | 1; | - | |
| 64 | 06.56289.0361 | Prevented dust cap | 1; | - | |
| 65 | 06.56289.0357 | Grease packing | 1; | - | |
| 66 | 81.90685.0054 | Grease packing | 1; | - | |
| 67 | 06.31421.4603 | Adjusting nut | 1; | - | |
| 68 | 81.35612.0015 | Gear | 1; | - | |
| 69 | 81.35611.0016 | Master axle | 1; | - | |
| 70 | 81.35204.0017 | Washer | 1; | - | |
| 71 | 81.93020.0449 | Bush | 1; | - | |
| 72 | 81.35610.0031 | Active column gear | 1; | - | |
| 73 | DZ9114320901 | Slotted round nut | 1; | - | |
| 74 | 06.16130.0122 | Lock piece | 1; | - | |
| 75 | DZ9114320016 | Gear | 1; | - | |
| 76 | 06.56279.0331 | Grease packing | 1; | - | |
| 77 | 06.56279.0335 | Grease packing | 1; | - | |
| 78 | 81.90685.0053 | Adjusting nut | 1; | - | |
| 79 | 81.35604.0021 | Flange | 1; | - | |
| 80 | 06.31421.0803 | Gear | 1; | - | |
| 81 | Q151C1275TF2 | Hex bolt | 12; | - | |
| 82 | 81.35606.0008 | Differential case | 1; | - | |
| 83 | 81.35204.0031 | Adjusting washer | 1; | - | |
| 83 | 81.35204.0032 | Adjusting washer | 1; | - | |
| 84 | 81.35617.0002 | Axle shaft gear | 1; | - | |
| 85 | 81.93020.0450 | Bush | 1; | - | |
| 86 | 81.90620.0087 | Adjusting nut | 1; | - | |
| 87 | 81.35608.0025 | Cross axle | 1; | - | |
| 88 | 81.91710.0445 | Washer | 4; | - | |
| 89 | 81.93021.0219 | Bush | 4; | - | |
| 90 | 81.35609.0009 | Plant gear | 4; | - | |
| 91 | 81.90701.0721 | Plant gear washer | 4; | - | |
| 92 | 81.35607.0006 | Differential case | 1; | - | |
| 93 | 81.35614.0001 | Selector fork | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
- Shaanxi - Shacman SX3256DR384 (F3000) > Ведущий мост > MAN DOUBLE-STAGE DECELERATION DRIVE MIDDLE BRIDGE > Anti-loose lock
- Shaanxi - Shacman SX4256NT324 > Мосты, двухступенчатый редуктор > MID SECTION OF MAN TWO-STAGE DECELERATION DRIVE > Anti-loose lock
- Shaanxi - Shacman SX4256NT324 > Мосты, двухступенчатый редуктор > MID SECTION OF MAN TWO-STAGE DECELERATION DRIVE > Anti-loose lock
- Shaanxi - Shacman SX5318GJBDT386TL > TRANSMISSION SYSTEM > MID SECTION OF MAN TWO-STAGE REDUCTION DRIVE > Anti-loose lock
- Shaanxi - Shacman SX3316DT426C > Drive axle > MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
- Shaanxi - Shacman SX3316HT406C > DRIVE AXLE > MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
- Shaanxi - Shacman SX3258DR384—F2000 > Drive axle > MAN Two-stage deceleration drive middle axle middle section > Anti-loose lock
- Shaanxi - Shacman SX3258DR384—F2000 > Drive axle > MAN Two-stage deceleration drive middle axle middle section > Anti-loose lock
- Shaanxi - Shacman SX42584V324 > Drive axle > MAN TWO-STAGE DECELERATION DRIVE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
- Shaanxi - Shacman F2000 > F2000 DRIVE AXLE > MAN TWO-STAGE DECELERATION DRIVE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
- Shaanxi - Shacman F2000 > F2000 DRIVE AXLE > MAN TWO-STAGE DECELERATION DRIVE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
- Shaanxi - Shacman SX42584V384TL > Drive axle > MAN TWO-STAGE DECELERATION DRIVE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
- Shaanxi - Shacman SX331863366 (X3000) > DRIVE AXLE > WHEELSIDE REDUCTION THROUGH-TYPE DRIVE AXLE MAIN REDUCER ASSEMBLY (MIDDLE AXLE) > Anti-loose lock
- Shaanxi - Shacman SX5315GJB5V326C (X3000) > DRIVE AXLE > WHEEL SIDE REDUCTION THROUGH DRIVE AXLE FINAL REDUCER (MIDDLE AXLE) > Anti-loose lock
- Shaanxi - Shacman SX331853386 (X5000) > DRIVING SYSTEM > DC95259390725 MIDDLE AXLE MAIN REDUCER > Anti-loose lock
- Shaanxi - Shacman SX3318DT366 (F3000) > ВЕДУЩАЯ ОСЬ; DRIVE AXLE > СРЕДНЯЯ СЕКЦИЯ ПРИВОДА СРЕДНЕЙ ОСИ MAN С ДВУХСТУПЕНЧАТЫМ РЕДУКТОРОМ; MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE SECTION OF THE MIDDLE AXLE > Anti-loose lock
- Shaanxi - Shacman SX3258DR384 (F3000) > Ведущая ось;DRIVE AXLE > Средняя секция ведущего моста MAN с двухступенчатым редуктором;MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE SECTION OF THE MIDDLE AXLE > Anti-loose lock
- DongFeng - DFH3410A563-L15R-930-00 > Часть переднего вала, заднего моста > 2500010-L05R3-01 Главный редуктор проходного ведущего моста в сборе > Замковая пластина
- Shaanxi - Shacman SX3316DV386 > Приводная ось;DRIVE AXLE > Средняя секция средней приводной оси MAN с двухступенчатым редуктором;MAN DOUBLE REDUCTION DRIVE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
- Shaanxi - Shacman SX3318HT366TL > Фронтальная ось и приводная ось;FRONT AXLE AND DRIVE AXLE > MAN ДВОЙНАЯ ОСЬ С ДВОЙНЫМ РЕДУКЦИЕЙ СРЕДНЯЯ ОСЬ;MAN DOUBLE-STAGE REDUCTION DRIVE AXLE MIDDLE AXLE MIDDLE SECTION > Anti-loose lock
